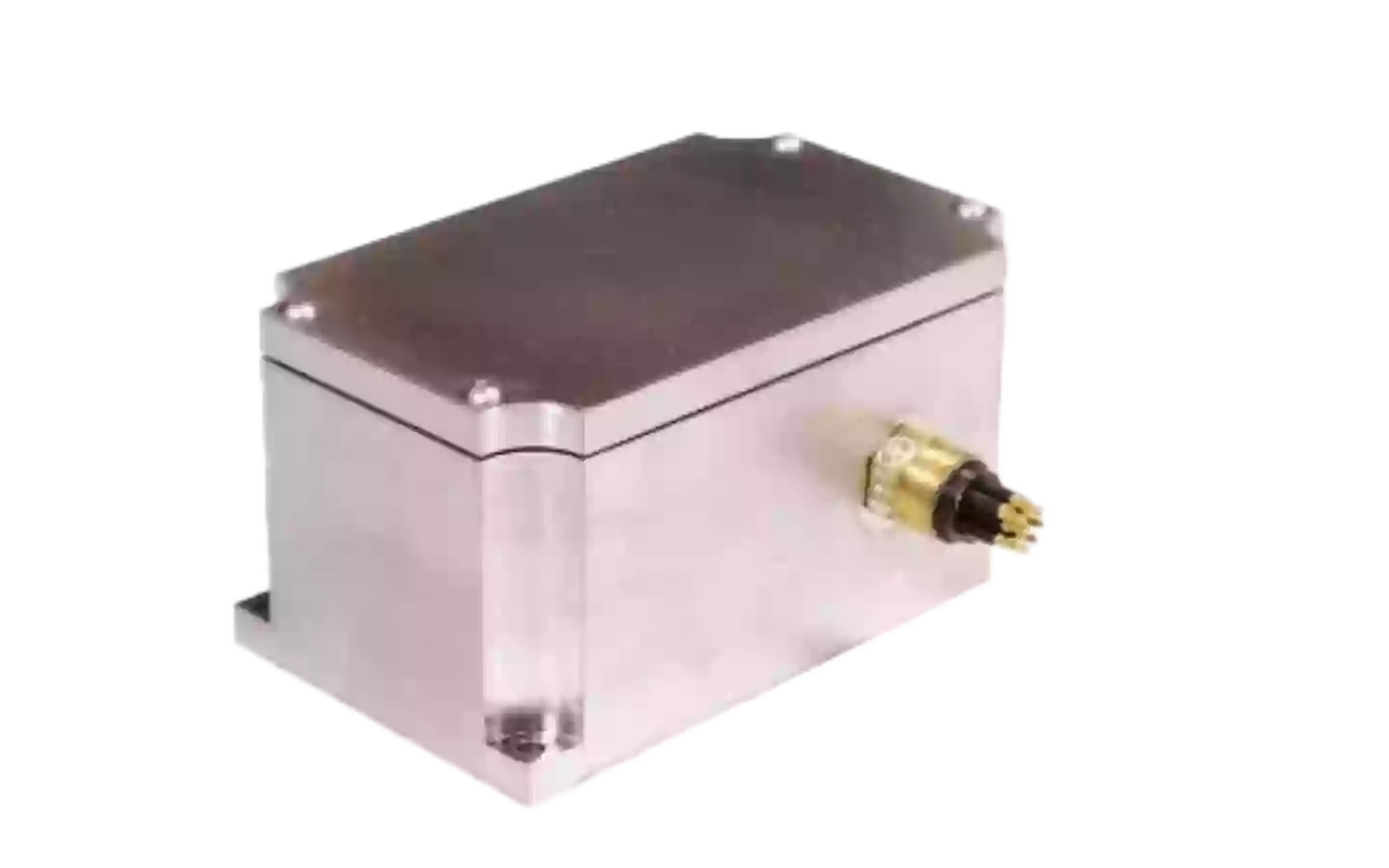

D802 Diepwater Digitale Submersible Tiltmeter

---

About the D802 DeepWater Digital Submersible Tiltmeter

The D802 Deep Water Digital Tiltmeter is the fully submersible version of the D801 Tuff Tilt Tiltmeter. Performance features are the same, but the DeepWater housing is machined from a solid piece of 316 stainless steel and incorporates a high-pressure neoprene connector. The pressure rating is 250 bars (2500 meters depth). Higher-pressure versions may be special ordered.

Temperature rating is governed by the neoprene connector. Wider temperature range is available with other connector types. Units are available in a variety of configurations including single axis (uniaxial), or dual-axis (biaxial), analog, digital, or 4-20mA outputs.

DeepWater tiltmeters are excellent choices for offshore work and other underwater applications.

Other Configurations (output)

A802 Deep Water Submersible Tiltmeter with ±5V Output
C802 DeepWater Submersible Tiltmeter with 4-20mA Output

Single-axis, dual-axis, digital, analog, waterproof, RS-232, RS-422, RS-485, Tuff Tilt, submersible, high pressure, IP68, 316SS, deep water, 4-20ma

---
