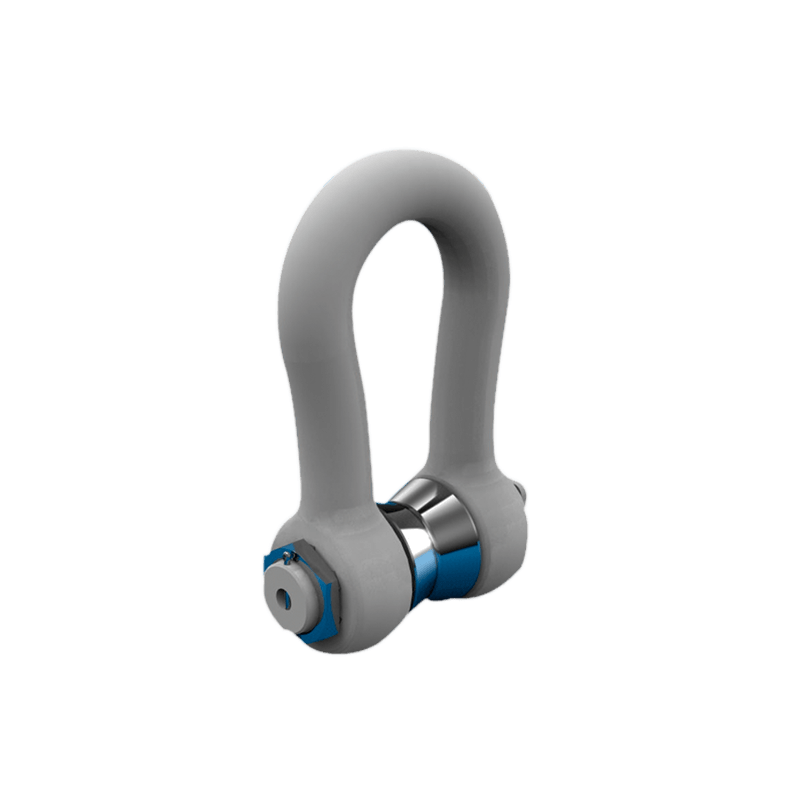

TELSHACK-B-HL Heavy Weight Draadloze Load Shackle

Geschikt voor gebruik in een breed scala van industriële en maritieme zware weegtoepassingen


Belangrijkste kenmerken

  • Ranges 120tonne to 1000tonne
  • High tensile carbon steel construction
  • GN Rope shackles
  • Environmentally sealed to IP67
  • Simple installation and operation
  • Continuous use battery life of 300 hours (with 1.2Ah batteries)

About the TELSHACK-B-HL Heavy Weight Wireless Load Shackle

The TELSHACK-B-HL heavy weight wireless load shackles are manufactured using the GN Rope H10 shackle. Suitable for use in a wide range of industrial and marine heavy lift weighing applications, these load shackles provide a robust and effective method of measuring large tensile loads. They are also particularly suited to offshore applications.

The unique telemetry housing is manufactured from tough high performance polyamide resin making it strong yet light, resulting in a better balanced load shackle when compared to others available on the market. Two clips enable you to open the housing to access and change the two AAA lithium batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage. The built in radio telemetry electronics operates on the 2.4GHz license free frequency.

The TELSHACK-B-HL is also supplied as standard with a handheld battery powered display which can toggle between tonnes or lbs, or alternatively, for multi-shackle applications, a single display can address up to 12 shackles for individual monitoring, or for summation/balancing applications.

We can also supply more complex telemetry systems. For further information on what we can offer, please contact our technical department with details of your application requirements.

Other features TELSHACK-B-HL

  • T24-HS-LS hand-held display utilizing 2.4GHz License Free Frequency
  • Shackle and load pin fully certified
  • Transmission range of up to 600 metres clear line of sight
  • Optional load centralizing bobbin
  • Many other telemetry configurations available

Applications for TELSHACK-B-HL

  • Towing/Mooring Tension
  • Winch Load Monitoring
  • Water Bag Testing
  • Bollard Testing

Heeft u deze sensor nodig voor uw project?

Vraag een vrijblijvende offerte aan of stuur ons uw contactgegevens voor een gratis en vrijblijvend gesprek. Onze sales engineers nemen dan binnen maximaal 1 tot 2 werkdagen contact met u op.

Praat met een expert

Praat met onze experts

Niet precies wat u zoekt? Wij bieden standaard sensoren, maar kunnen u ook helpen met voor u aangepaste sensoren of een volledig op maat gemaakte meetoplossing. Neem contact met ons op voor advies of prijzen.

Praat met een expert

Technische specificaties

Specificaties Waarde
Battery 2x AAA Alkaline (supplied with 1.2Ah batteries)
Battery life >300 hours typically (continuous use with 1.2Ah batteries)
Environmental protection level IP67
Non-linearity <±1% of rated load (typically)
Non-repeatability <±0.1% of rated load
Operating temperature range -20 to +55°C
Proof load 150% of rated load
Rated load (tonnes) 120, 150, 200, 250, 300, 400, 500, 600, 700, 800, 900, 1000
Telemetry housing Polyamide resin
Transmission distance Up to 600 metres (clear line of sight)
Ultimate breaking load 300% of rated load
