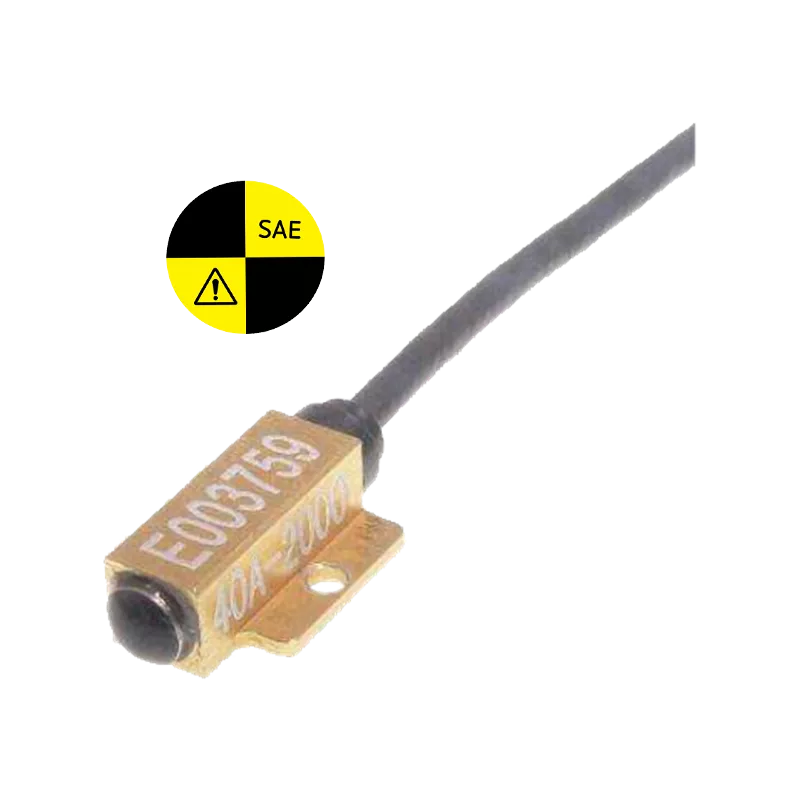

40A Auto Safety Testing Accelerometer
Piezoresistive acceleration sensor designed to be compliant with the latest SAEJ211/J2570
About the 40A Auto Safety Testing Accelerometer
The Model 40A Accelerometer is a small fluid damped piezoresistive accelerometer designed to be compliant with the latest SAE J211/J2570 (AUG2009) specifications. This unit features built-in mechanical stops, anodized aluminum alloy housing and flexible cable output. The sensing element is fluid damped to extend useful frequency range and reduce the adverse effect of high frequencies ringing caused by sensor resonance.
Key features 40A
- Silicon Piezoresistive Elements
- ±25 to ±2,000 g Ranges
- 2-10 Vdc Excitation
- -20 to +80 ºC Temperature Range
- Critically Damped Sensor
- Low Transverse Sensitivity
- <±20 mV Zero Offset
Applications 40A
- Anthropomorphic Dummy Instrumentation
- Crush Zone Testing
- Pedestrian Impact Testing
- Auto Safety Testing Applications
- Shock and Impact Testing
- Transient Drop Testing
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Cable (integral 30 foot cable) | 5x #30 AWG Conductors, PFA Insulated, Braided Shiel d, PU Jacket |
| Case material / cover material | Anodized Aluminum |
| Damping ratio | 0.7 |
| Frequency response | 0-200 Hz to 0-4500 Hz |
| Humidity | Epoxy Sealed, IP61 |
| Measurement range | ±25 g / ±100 g / ±250 g / ±500 g / ±1000 g / ±2000 g |
| Natural frequency | 800 - 10000 Hz |
| Non-linearity | ±1% |
| Operating temperature | -20°C to +80°C |
| Output [supply voltage] | ±0.15 V [2 – 10 VDC] |
| Sensitivity | 6.0 mV/g | 1.5 mV/g | 0.60 mV/g | 0.30 mV/g | 0.15 mV/g | 0.075 mV/g |
| Shock limit | 10000 g (5000g for Range ±25g) |
| Storage temperature | -20°C to +80°C |
| Weight | <5g |
| Zero acceleration output | ±20mV |
