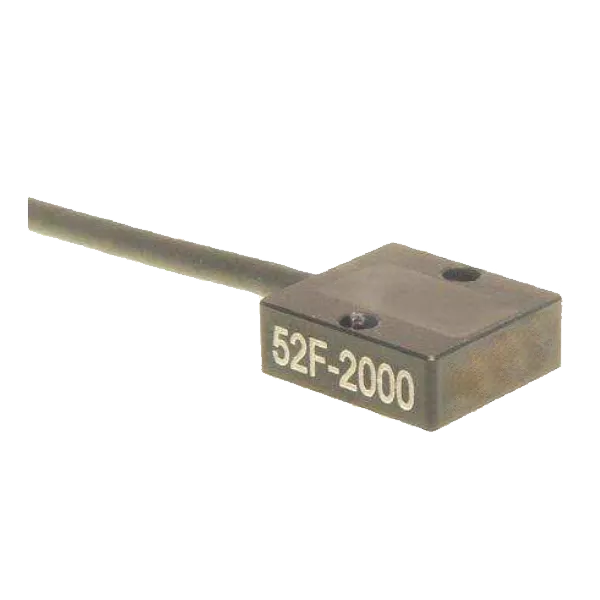

52F Auto Safety Testing Accelerometer
Piezoresistive MEMS acceleration sensor designed for crashtests, biomechanic, development, explosiontest
About the 52F Auto Safety Testing Accelerometer
The Model 52F Accelerometer has an advanced piezoresistive MEMS sensing element which offers excellent dynamic range and stability. This unit features a full bridge output with an operating temperature range from -40 to +90°C. A slight amount of gas damping provides outstanding shock survivability and a flat amplitude response to 7kHz.
Key features 52F
- 2-10 Vdc Excitation
- Measures Static Acceleration
- ±5,000 g’s Shock Protection
- Transverse sensitivity <3%
- Weight <1.0 grams
- 26kHz Resonant Frequency
- Linearity ±1%
Applications 52F
- Automotive crash testing
- High impact research
- Biomechanical studies
- Blast testing
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Cable (integral 30 foot cable) | 4x #32 AWG PFA Insulated, Braided Shield, PU Jacket |
Case material | Anodized Aluminum |
Frequency response | 0-1400 Hz to 0-7000 Hz |
Humidity | Epoxy Sealed, IP65 |
Measurement range | ±50 g / ±200 g / ±500 g / ±2000 g |
Non-linearity | ±1% |
Operating temperature | -40°C to +90°C |
Output [supply voltage] | ±0.1 V [2 – 10 VDC] |
Resonant frequency | 4000 - 26000 |
Sensitivity | 2 mV/g | 0.9 mV/g | 0.4 mV/g | 0.15 mV/g |
Shock limit | 5000 g |
Storage temperature | -40°C to +90°C |
Weight | 1.0 g |
Zero acceleration output | ±50mV |
