ASC 66C1 Piezoresistive Accelerometer
Uniaxial, small and compact acceleration sensor for testing light weight structures
About the ASC 66C1 Piezoresistive Accelerometer
The accelerometers are based on an advanced piezoresistive MEMS technology and can be used in a low frequency response up from 0Hz. The piezoresistive sensor element is made of monolithic resistors. These resistors are attached to carrier-elements and are electrically connected in a Wheatstone bridge. The electrical signal changes proportional to the vibration.

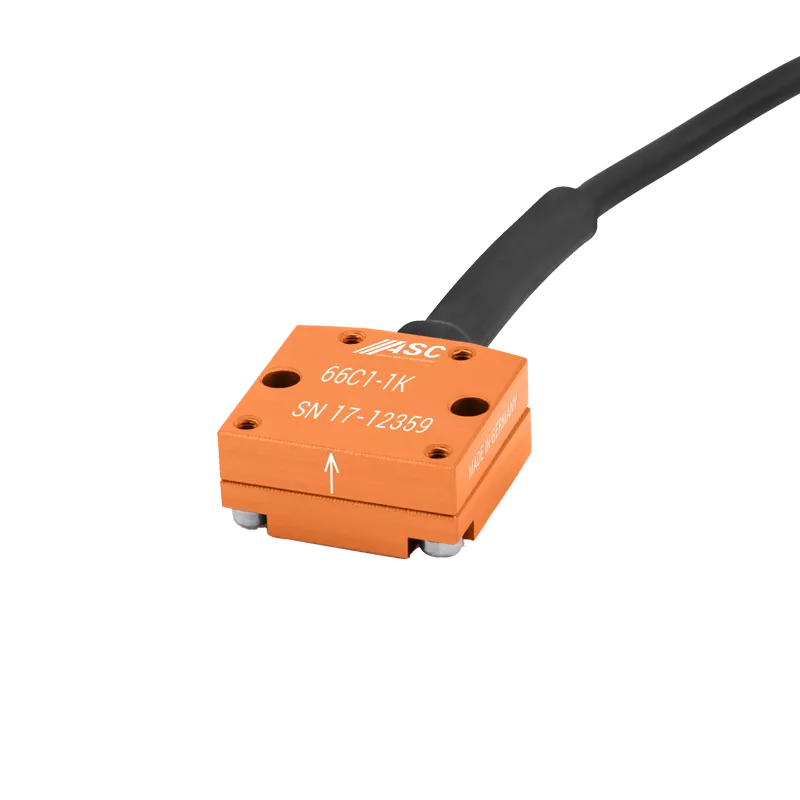

The model ASC 66C1 is a uniaxial accelerometer based on piezoresistive technology. The ASC 66C1 is a small and compact accelerometer. The housing is a flat design made of hard anodised aluminium. Due to low mass, the model is ideal for testing on light-weight structures.
The sensing element has integrated overload stops and therefore the silicon chip is highly shock resistant. The ASC 66C1 has an excellent non-linearity over a wide frequency response. Electrically the units features a Wheatstone bridge configuration.
The model ASC 66C1 can be obtained with all common sensor ID modules. A very high flexible and rugged cable provides a simple mounting. The model ASC 66C1 is factory calibrated and is equipped with 6 meter cable as a standard.
Key features ASC 66C1
- Uniaxial
- Wheatstone Bridge
- mV Output
- Aluminium Housing
- Made in Germany
- Range: 500g, 1000g and 2000g
- Small Size
- Light Weight
- DC Response
- ±5000g Shock Resistance
- Gas Damped
Options ASC 66C1
- Customised Cable Length
- Customised Connector
- TEDS Module
- Equipment Exchange (EQX)
Applications ASC 66C1
- Automotive Crash Testing
- Shock Testing
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Amplitude non-linearity (% fso) | ±1 |
| Excitation voltage (v dc) | 3 to 10 |
| Frequency response: ±5% | 2500 Hz |
| Operating temperature range (°c) | -20 to +80 |
| Range (±g) | 500 | 1000 |2000 |
| Resonance frequency (khz) | 15 | 15 | 26 |
| Sensitivity (mv/g) | 0.4 | 0.15 | 0.13 |
| Shock limit (±g) | 5000 |
| Weight (gram, without cable) | 3 |
