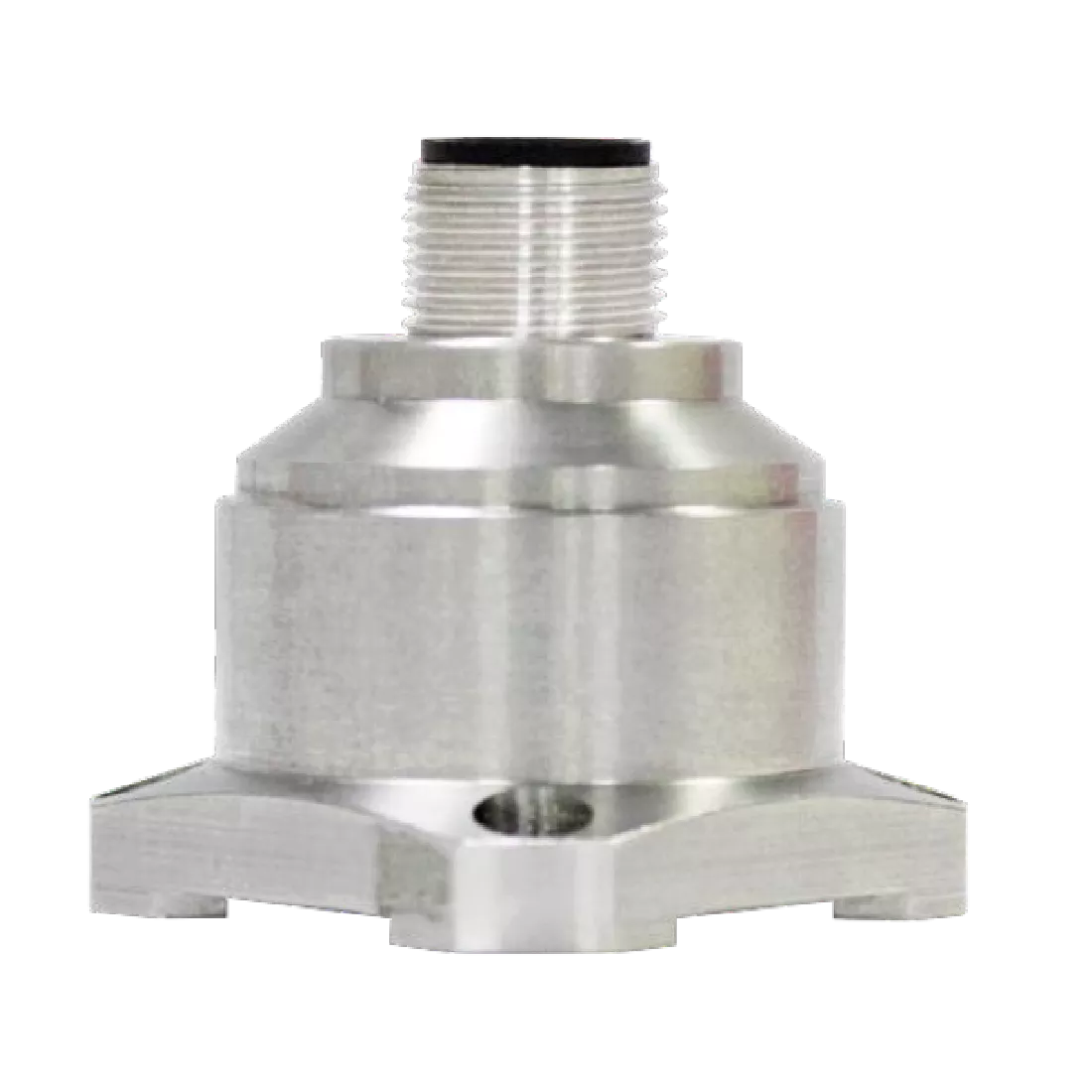

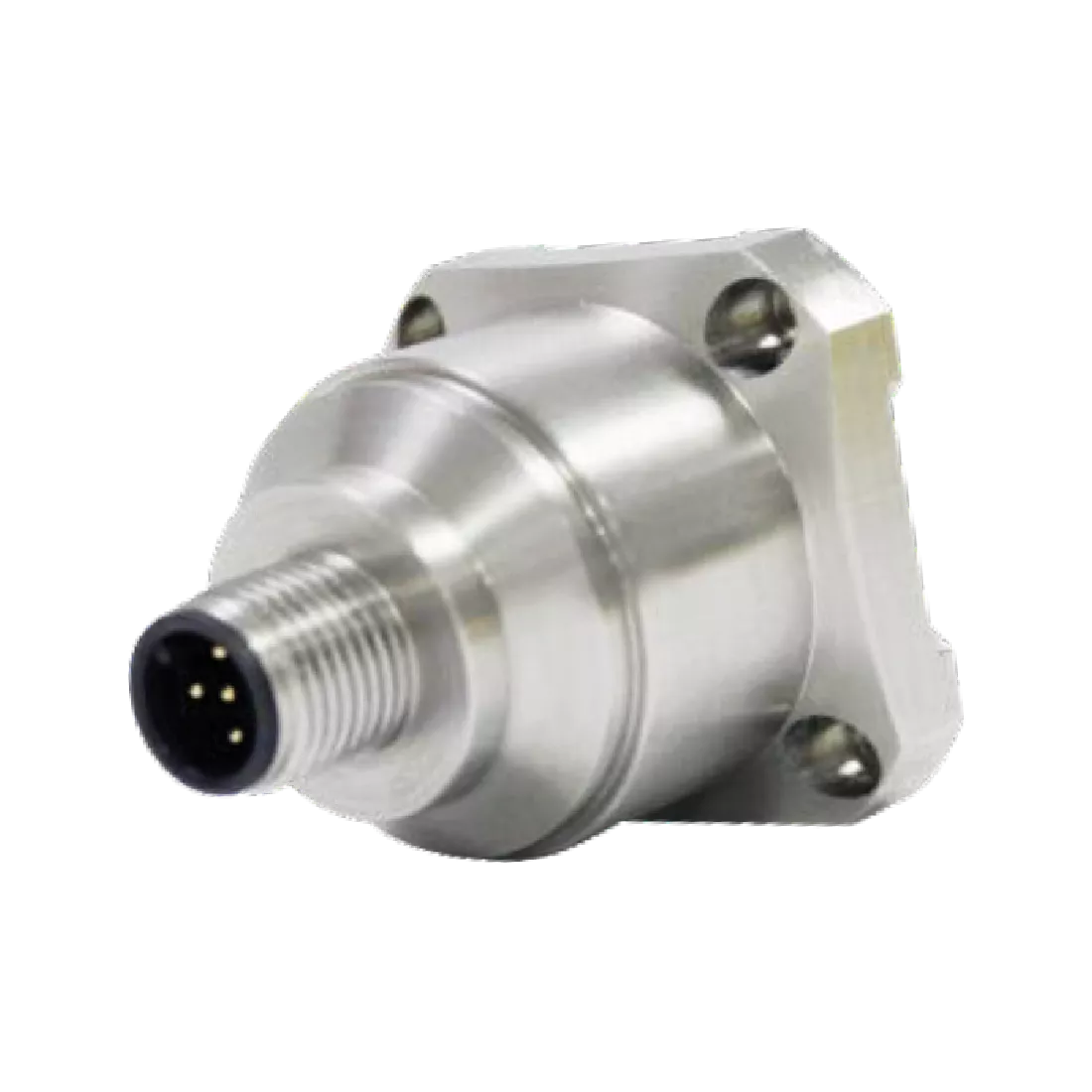

AKA 300 LC Series Triaxial Analog MEMS Accelerometer
Triaxial, analogue MEMS accelerometer for low power and high stability.
Key features
- Up to 1000 Hz bandwidth
- Ruggedized for harsh environment operation
- IP67 rating
- High Sensitivity with 1mg resolution
- 4-20mA output
- 9-36Vdc input voltage
- 2 meter cable whip (Included)
- M12 connector
About the AKA 300 LC Series
The AKA is based on silicon micro-machined MEMS Capacitive Accelerometer technology and designed for low power and high stability.
Key features AKA 300 LC Series
- Triaxial Configuration
- Measuring ranges of ±2G thru ±40G
- 100g shock protection
- Up to 1000 Hz bandwidth
- Ruggedized for harsh environment operation
- IP67 rating
- High Sensitivity with 1mg resolution
- 4-20mA output
- 9-36Vdc input voltage
- 2 meter cable whip (Included)
- M12 connector
Applications AKA 300 LC Series
- Tower Cranes
- Wind Power Monitoring
- Robotics
- Traffic System Analysis
- Low Frequency Vibration Measurement
- Medical Equipment testing
- Automatic Control Systems
- Large Machinery Monitoring
- Vehicle Testing
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
0° output error (ma) | <0.005 |
Bandwidth (hz, 3db) | 725 |
Bias temp coefficient (%/°c) | 0.01 |
Calibration deviation (mg) | <1.0 |
Cross axis sensitivity (%) | 1.0 -2.0 |
Enclosure dimensions | 34.3mm (L) x 34.3mm (W) x 38.5mm (H) |
Frequency response (hz) | 500 |
Input voltage (vdc) | 9 to 36 Vdc |
Measurement range, (g) | ±2, ±4, ±8, ±10, ±20, ±40 |
Measuring axis | X, Y, & Z (3-axis) |
Nonlinearity (% of full scale, max.) | <0.5, <0.5, <0.8, <1.0, <1.0, <1.0 |
Operating current | <60mA at 12Vdc |
Operating temperature | -40°C to +85°C |
Output signal (ma) | 4 - 20 |
Resolution @ 1hz (mg, max) | <1.0 |
Seal | IP67 |
Sensitivity (±10%, mv/g) | 1250.0, 625.0, 312.5, 250.0, 125.0, 62.5 |
Weight (grams) | 73.5 |
