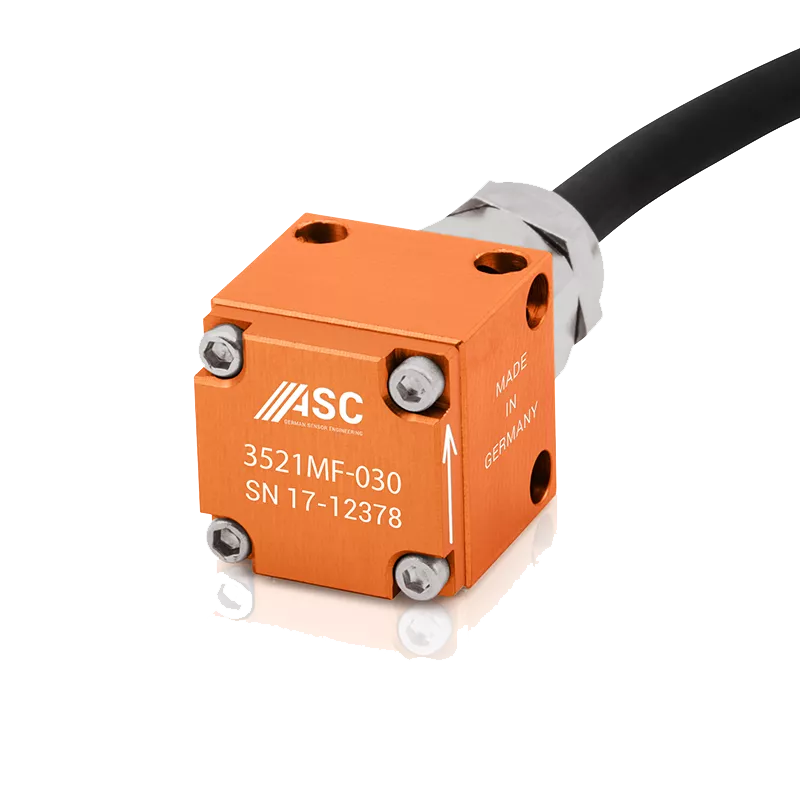

ASC 3521MF Capacitive Accelerometer
Uniaxial analog voltage output acceleration sensor with an anodized aluminium housing (IP65)
About the ASC 3521MF Capacitive Accelerometer
The accelerometers of type ASC 3521MF are based on proven MEMS technology and capacitive operating principle. The integrated electronic circuitry enables a differential analog voltage output (±2.7 V FSO) and flexible power supply voltage from 5 to 40 VDC. The MF (Medium Frequency) accelerometers from ASC provide a wide frequency response range from 0 Hz to 7 kHz (±3 dB) and an extremely robust design with shock resistance up to 6,000 g.
The sensors feature a lightweight, reliable aluminum housing with protection class IP65 and an integrated cable
with configurable length and connectors.
The compact design of uniaxial ASC 3521MF enables numerous possible applications, such as shock and vibration tests regarding operational stability of HV batteries.
Key features ASC 3521MF Capacitive Accelerometer
- Uniaxial
- MEMS Capacitive
- Aluminum Housing
- Made in Germany
- Low Noise Differential Voltage Output
- DC Response, Gas damped
- Very High Shock Resistance
- Excellent Offset and Scale Factor Stability
Options ASC 3521MF Capacitive Accelerometer
- Customised Cable Length
- Customised Connector
- TEDS Module
Applications ASC 3521MF Capacitive Accelerometer
- Operational Stability Tests
- Test Bench Applications
- E-Mobility, HV Batteries
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Amplitude non-linearity % fso | <0.1 (typ) | <0.3 (max) |
| Measurement range g | ±2, ±5, ±10, ±30, ±50, ±100, ±200 |
| Noise density μg/√hz | 10, 20, 35, 100, 170, 340, 680 |
| Offset (bias) mv | ±10 |
| Operating current consumption ma | <10 |
| Operating temperature range ˚c | -20 to +100 |
| Power supply voltage v | 5 - 40 |
| Protection class | IP65 |
| Scale factor (sensitivity) mv/g | 1350, 540, 270, 90, 54, 27, 13.5 |
| Weight (without cable) | 22 gram |
