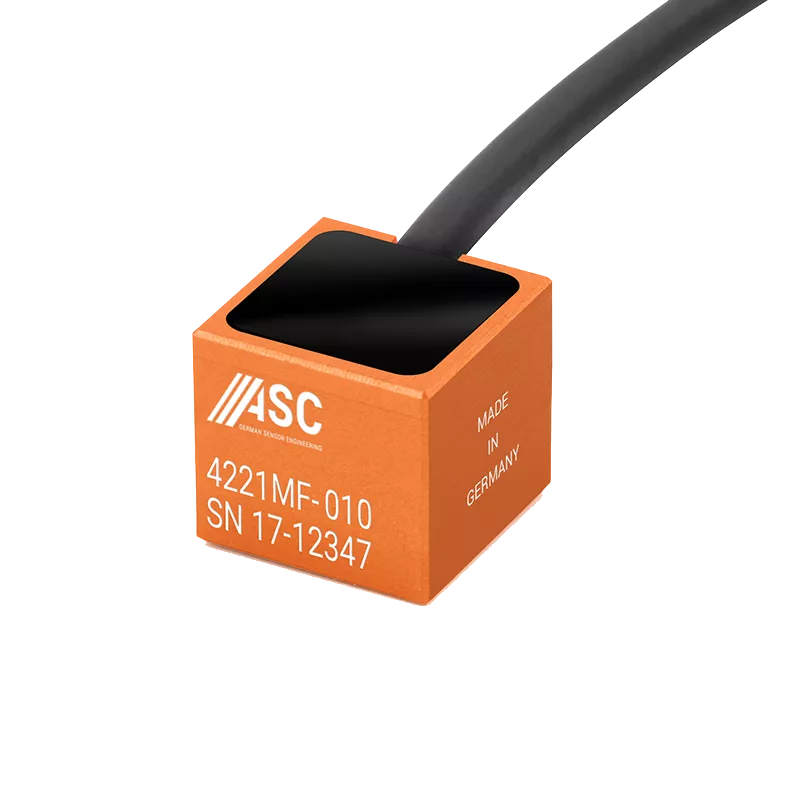

ASC 4221MF Capacitive Accelerometer

Uniaxial analog voltage output acceleration sensor with a small and lightweight aluminium housing (IP67)


About the ASC 4221MF Capacitive Accelerometer

The accelerometers of type ASC 4221MF are based on proven MEMS technology and capacitive operating principle. The integrated electronic circuitry enables a differential analog voltage output (±2.7 V FSO) and flexible power supply voltage from 5 to 40 VDC. The MF (Medium Frequency) accelerometers from ASC provide a wide frequency response range from 0 Hz to 7 kHz (±3 dB) and an extremely robust design with shock resistance up to 6,000 g.

The sensors feature a lightweight, reliable aluminum housing with protection class IP67 and an integrated cable with configurable length and connectors.

The uniaxial ASC 4221MF have an ultra-compact design and weigh only 3 grams. This makes them ideal for measuring applications in hard-to-access installations, such as testing the operational stability of automotive components.

Key features ASC 4221MF Capacitive Accelerometer

  • Uniaxial
  • MEMS Capacitive
  • Measurement Range: ±2 to ±200 g
  • Noise Density: 10 to 680 µg/√Hz
  • Frequency Range (±5 %): DC to 2900 Hz
  • Aluminum Housing
  • Made in Germany
  • Low Noise Differential Voltage Output
  • DC Response, Gas damped
  • Very High Shock Resistance
  • Excellent Offset and Scale Factor Stability

Options ASC 4221MF Capacitive Accelerometer

  • Customised Cable Length
  • Customised Connector
  • TEDS Module

Applications ASC 4221MF Capacitive Accelerometer

  • Operational Stability Tests
  • Structural Analyses
  • Flutter Tests



Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Amplitude non-linearity % fso <0.1 (typ) | <0.3 (max)
Broadband noise (over specified frequency range ±5 %) µv 250, 310, 410, 440, 475, 490, 460
Measurement range g ±2, ±5, ±10, ±30, ±50, ±100, ±200
Noise density µg/√hz 10, 20, 35, 100, 170, 340, 680
Offset (bias) mv ±10
Operating temperature range °c -20 to +80
Power supply voltage v 5 to 40
Protection class IP67
Scale factor (sensitivity) mv/g 1350, 540, 270, 90, 54, 27, 13.5
Weight (without cable) gram 22
