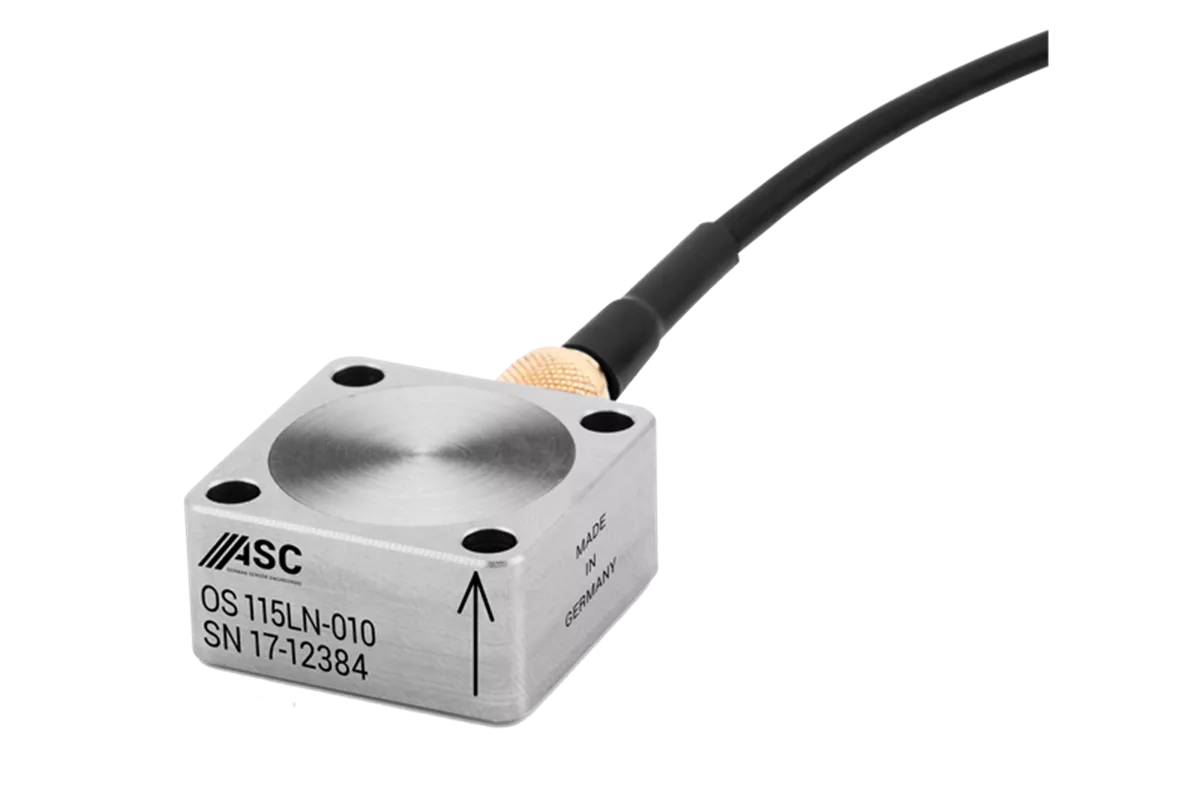

ASC OS-115LN MEMS Capacitive Accelerometer
Analog voltage output acceleration sensor and for the demanding requirements of offshore applications
About the ASC OS-115LN
The accelerometers of type ASC OS-115LN are based on proven MEMS technology and capacitive operating principle. The integrated electronic circuitry enables a differential analog voltage output (±4 V FSO) and flexible power supply voltage from 6 to 40 VDC. The LN (Low Noise) accelerometers from ASC provide an outstanding noise performance from 7 to 400 µg/√Hz which is essential for demanding measurements of smallest frequencies
and amplitudes.
The sensors feature a robust, reliable stainless-steel housing with protection class IP68 and a detachable cable with configurable length and connectors.
The hermetically sealed housing of the accelerometers is ideal for very harsh environmental conditions, e.g. bogie stability tests and monitoring applications in rail transport or condition
monitoring of vehicles and their components in the construction sector.
Key features ASC OS-115LN
- Uniaxial
- MEMS Capacitive
- Measurement Range: ±2 to ±400 g
- Noise Density: 7 to 400 µg/√Hz
- Frequency Range (±5 %): DC to 2000 Hz
- Stainless-Steel Housing (IP68)
- Made in Germany
- Very Low Noise Differential Voltage Output
- DC Response, Gas damped
- High Shock Resistance
- Excellent Offset and Scale Factor Stability
- Detachable Connector Cable
Options ASC OS-115LN
- Customized Cable Length
- Customized Connector
- TEDS Module
- V4A Stainless-Steel Housing
Applications ASC OS-115LN
- Railway Engineering
- Condition Monitoring
- Structural Health Monitoring
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Measurement range g | ±2, ±5, ±10, ±25, ±50, ±100, ±200, ±400 |
Power supply voltage v | 6 to 40 |
Scale factor (sensitivity) mv/g | 2000, 800, 400, 160, 80, 40, 20, 10 |
Specified frequency response range (±5 %) hz | 0 to 250, 0 to 400, 0 to 700, 0 to 1300, 0 to 1600, 0 to 1700, 0 to 1900, 0 to 2000 |
Weight (gram, without cable) | 31 |
