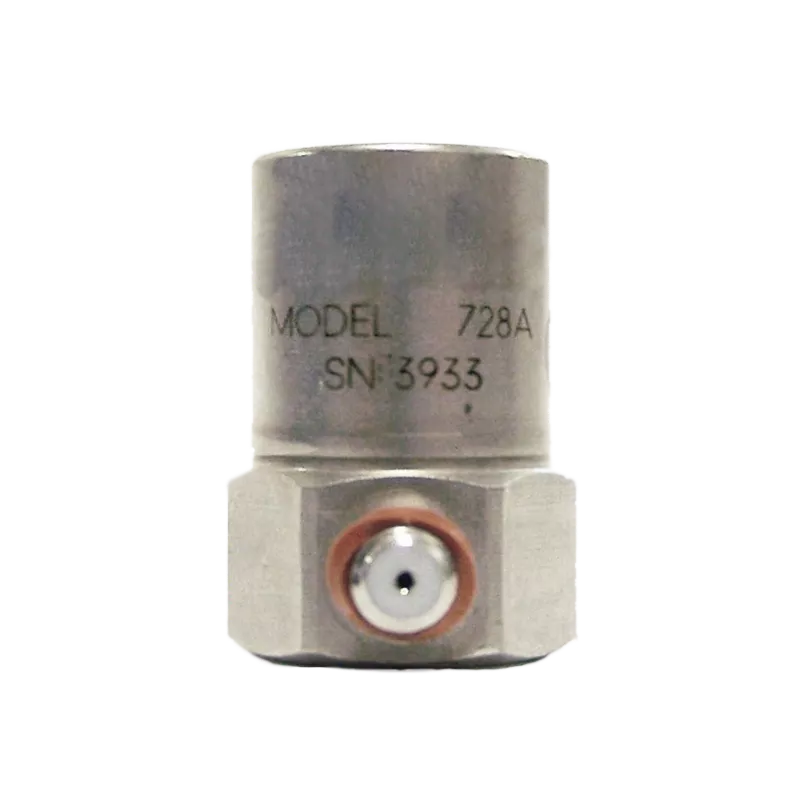

728A Low Frequency (Seismic) Accelerometer
High sensitivity, low-noise acceleration sensor
About the 728A Low Frequency (Seismic) Accelerometer
Side-exit, low-noise, microdot (10-32) connector, case grounded, 500 mV/g accelerometer
Key features 728A
- Hermetic seal
- Wide frequency range
- Miswiring protection
- Compact size
- Low noise floor
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Side exit |
| Connector style | 10-32 |
| Frequency response | 1 Hz - 10,000 Hz |
| Full-scale range | 15 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 10-32 tapped hole |
| Resonance frequency | 24 kHz |
| Sensitivity | 500 mV/g |
| Sensitivity tolerance | ±5 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -50°C to +120°C |
| Weight | 44 grams |
