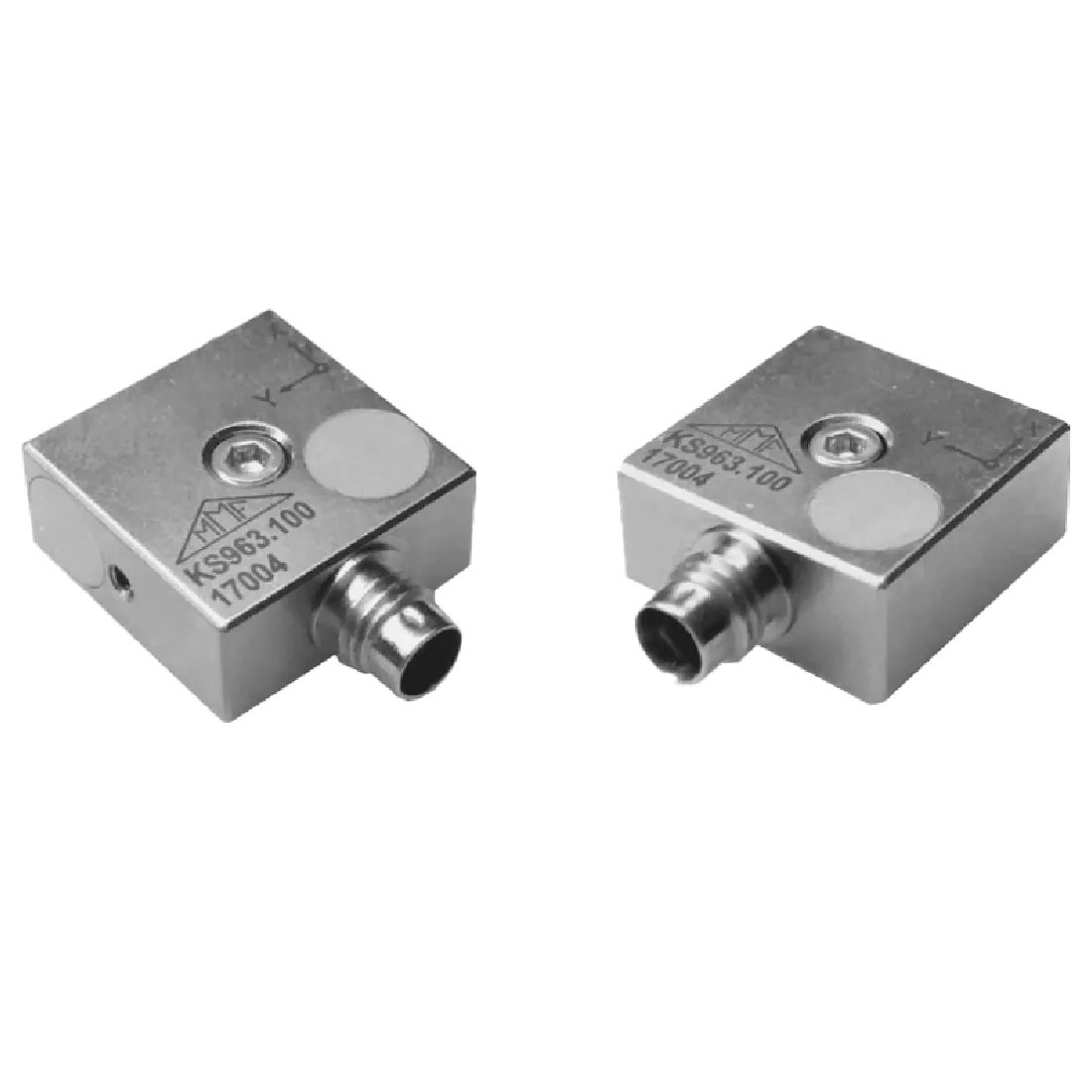

KS963B10/B100 Triaxial Accelerometers

Piezoelectric accelerometer for vibration measurements in 3 axis directions simultaneously

View technical specifications

Key features

  • Low profile
  • Excellent amplitude response
  • High resolution
  • Low temperature coefficient
  • Includes electronic data sheet (TEDS)
  • Suitable for modal and structural analysis
  • Through hole for mounting

About the KS963B10/KS963B100 Triaxial Accelerometers

These piezoelectric accelerometers are suitable for vibration measurements in 3 axis directions simultaneously.
A through hole simplifies attachment and axis adjustment. The miniature sensors KS903, KS963 and KS943 are suitable for small and light measuring objects.

Key features KS963B10/KS963B100:

  • Low profile
  • Excellent amplitude response
  • High resolution
  • Low temperature coefficient
  • Includes electronic data sheet (TEDS)
  • Suitable for modal and structural analysis
  • Through hole for mounting

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

KS963B10/B100 Triaxial Accelerometers

 Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Case material Aluminium, vernickelt / Nickel-plated aluminum
Constant current supply 2 .. 20 mA
Destruction limit 8000 g
Non-linearity for full range 2 %
Operating temperature range -40 / 120, -40 / 100 °C
Output bias voltage 12 .. 14,5 V
Output impedance < 100 Ω
Output ks963b10 ks963b100 IEPE
Phase response 1,8 .. 3300, 1,4 .. 3300 Hz
Piezo design Scherprinzip / Shear design
Range 500, 60 g
Residual noise < 3000, < 400 μg
Resonant frequency > 40, > 25 kHz
Temperature transient sensitivity 2, 0,2 ms-2/K
Transverse sensitivity < 5 %
Voltage sensitivity 10 ± 20%, 100 ± 20 % mV/g
