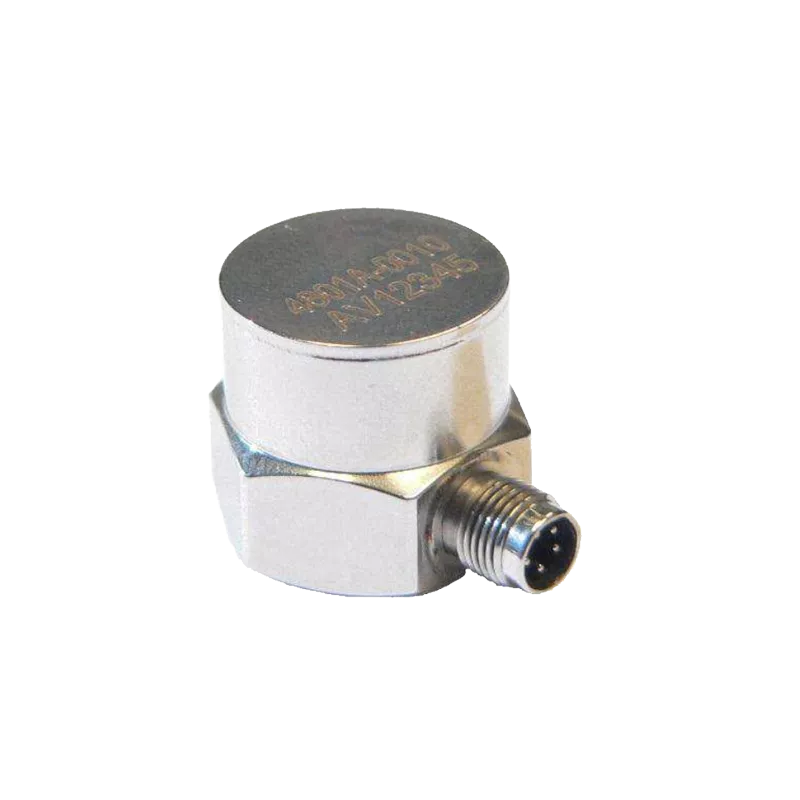

4801A Amplified DC Accelerometer

MEMS DC signal conditioned acceleration sensor designed for vehicle testing, structural testing, test & instrumentation, transportation measurements, environmental testing


About the 4801A Amplified DC Accelerometer

The Model 4801A is a true hermetically sealed accelerometer in a rugged stainless steel package. It offers an amplified signal conditioned output in ranges from ±2 to ±200g. The model 4801A incorporates enhanced temperature compensation and a gas damped MEMS sensing element for optimum frequency response. Mechanical over-range stops offers shock protection up to 5,000g designed for both static and dynamic measurements in critical applications.



Key features 4801A

  • Amplified Output
  • Gas Damped MEMS Element
  • Detachable Cable
  • DC to 1500Hz Response
  • Stud Mounting



Applications 4801A

  • Vehicle Testing
  • Structural Testing
  • Test & Instrumentation
  • Transportation Measurements
  • Environmental Testing

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Case material Stainless Steel
Damping ratio 0.7 (0.6 at 200g)
Frequency response 0-250 Hz to 0-1000 Hz
Humidity Hermetically Sealed, IP67
Measurement range ±2g / ±5g / ±10g / ±20g / ±50g / ±100g / ±200g
Natural frequency 700 - 8000 Hz
Non-linearity ±1%
Operating temperature -55°C to 125°C
Output [supply voltage] ±2 V [8 – 36 VDC]
Sensitivity 1000 mV/g | 400 mV/g | 200 mV/g | 100 mV/g | 40 mV/g | 20 mV/g | 10 mV/g
Shock limit 5000 g
Storage temperature -55°C to 125°C
Weight 22 g
Zero acceleration output ±50 mV
