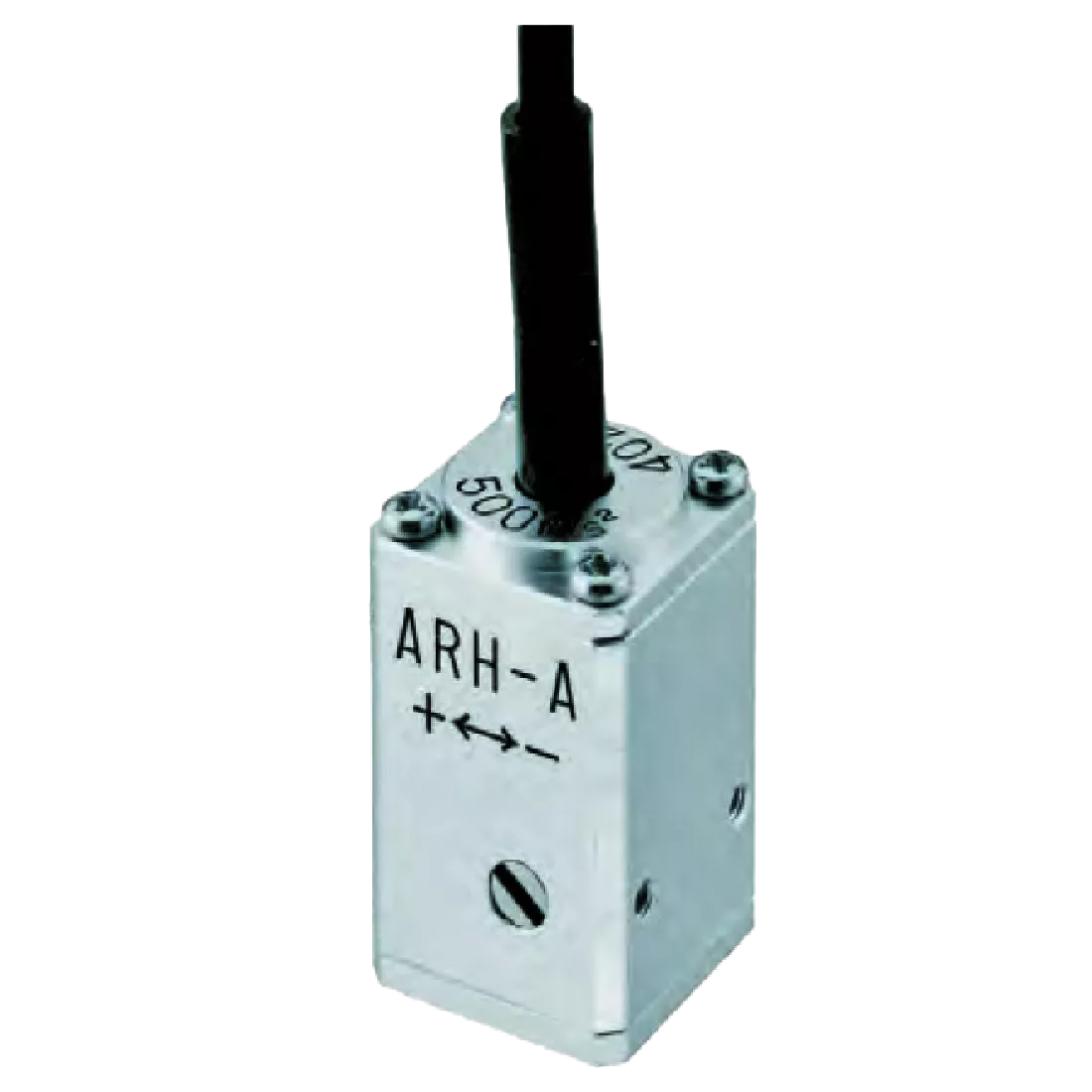

ARH-A Capacitive Accelerometer
Waterproof, low-capacitance accelerometer suitable for concrete embedding
Key features
- Capacity 10~500 m/s²
- Can be used in water, soil or concrete
- Use in adverse environment
- Waterproof
- Degrees of protection: IP67 equivalent
About the ARH-A Capacitive Accelerometer
The ARH-A acceleration transducer has a waterproof structure. It is installed in water or ground or embedded in concrete. The rigid waterproof structure makes this transducer suitable for use in an adverse environment or
for outdoor use. Protection ratings: IP67 equivalent
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Allowable exciting voltage (v) | 5 |
| Allowable temperature range (°c) | -10 ~ +50 |
| Capacity (m/s²) | 10, 20, 50, 100, 200, 500 |
| Frequency response range (hz) | DC~50, DC~80, DC~130, DC~180, DC~310, DC~520 |
| Input/output resistance (Ω) | 120 |
| Natural frequency (hz) | 100, 150, 240, 300, 520, 870 |
| Non-linearity (%ro) | 1 |
| Over load (%) | 300 |
| Rateped output (mv/v) | 0.5 (1000×10-6 strain) |
| Recommended exciting voltage (v) | 2 or less |
| Water pressure resistive (kpa) | 500 |
| Weight (g) | 18 |
