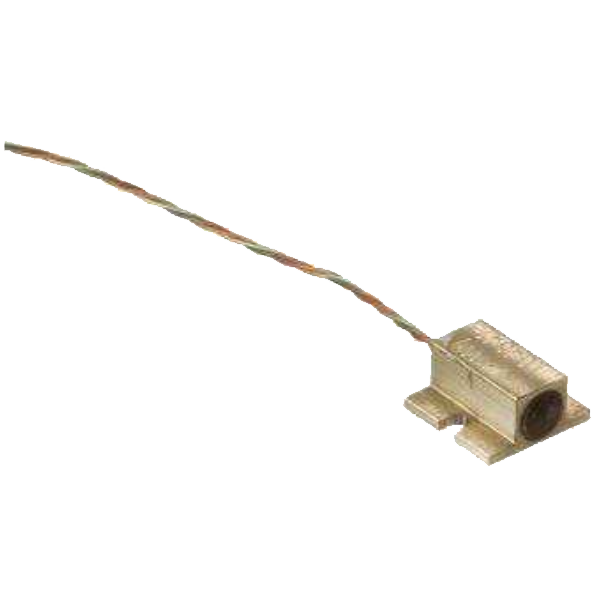

EGAS Mini Critically Damped Accelerometer

Well-suited for on-site testing as well as laboratory use


About the EGAS Mini Critically Damped Accelerometer

The Model EGAS is a miniature, uni-axial accelerometer featuring ranges from ±5 g through ±2500 g. This rugged unit weights less than 1 gram (without leads) and has an over-range limit of 10000g's. The 1/2 active bridge is suitable for shunt calibration. With an operating temperature range of -40 ºC to +120 ºC, the EGAS is the unit of choice for measurement professionals in the automotive, military, aerospace and transportation industries. Its combined nonlinearity and hysteresis of ±1 % makes the EGAS well-suited for on-site testing as well as laboratory use.

Key features EGAS

  • Weighs < 1 gram
  • Static and dynamic measurement
  • Frequency response through 3500 Hz
  • 2 % Transverse sensitivity



Applications EGAS

  • Sports and recreation
  • Modeling and entertainment
  • Biodynamics
  • Automotive testing
  • Laboratory usage

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Cable 4x #34 AWG Conductors PTFE Insulated, Shielded & Jacketed on – FS & -FT Options
Case material Stainless Steel
Compensated temperature +20°C to+80°C (+70°F to +170°F)
Damping ratio 0.7
Frequency response 0-150 Hz to 0-3500 Hz
Humidity Epoxy Sealed
Measurement range ±5 g / ±10 g / ±25 g / ±50 g / ±100 g / ±250 g / ±500 g / ±1000 g / ±2500 g
Natural frequency 300 - 7000 Hz
Non-linearity ±1%
Operating temperature -40°C to +120°C (-40°F to +250°F)
Output [supply voltage] 0.1 V [15 VDC]
Sensitivity 20 mV/g | 10 mV/g | 4 mV/g | 2 mV/g | 1 mV/g | 0.4 mV/g | 0.2 mV/g | 0.1 mV/g | 0.04 mV/g
Shock limit 500 g / 1000 g / 2000 g / 5000 g / 10000 g / 10000 g / 10000 g / 10000 g / 10000 g
Storage temperature -40°C to +120°C (-40°F to +250°F)
Weight 1 g
Zero acceleration output ±15mV
