4020 | 4030 Amplified DC Accelerometers

Low noise, signal conditioned dual and triaxial DC acceleration sensor packaged in a durable molded housing

About the 4020 | 4030 Amplified DC Accelerometers

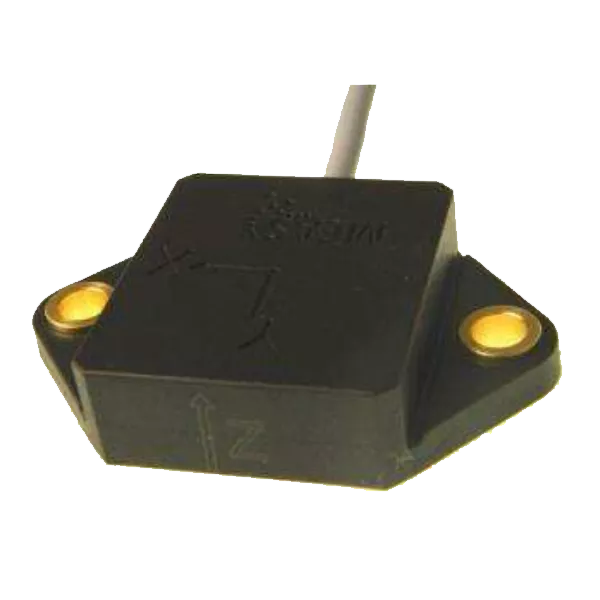

The Model 4020 & 4030 are low noise, signal conditioned DC accelerometers packaged in a durable molded housing. The accelerometers are offered in ±2g & ±6g ranges with a nominal 0-200Hz bandwidth. The model 4020 is a dual axis configuration (X&Y axes) while model 4030 is a triaxial configuration. The capacitive silicon MEMS sensing element offers high resolution and long term stability for critical measurement applications.

Key features 4020 | 4030

5-30Vdc Excitation Voltage
Environmentally Sealed
Low Pass Filtered Output
Capacitive Silicon MEMS Element
Integral #24 AWG Cable
Self-Test Enabled

Applications 4020 | 4030

Low Frequency Vibration Monitoring
Tilt & Inclination Measurement
Motion Measurements
Structural Monitoring
Laboratory Testing

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

4020 4030 amplified dc accelerometers en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Excitation current	4 mA
Frequency response	0-200 Hz
Housing material	Nylon 6-6, 30% GF Molded Housing
Humidity	Epoxy Sealed, IP65
Measurement range	±2 g / ±6 g
Non-linearity	±1 %
Operating temperature	-40 to 85 °C [ -40 – 185 °F ]
Output [supply voltage]	±2 V [5 - 30 VDC]
Sensitivity	1000 mV/g \| 333 mV/g
Shock limit	2000 g
Weight (cable not included)	50 g
Zero acceleration output	2.5 ±1 V
