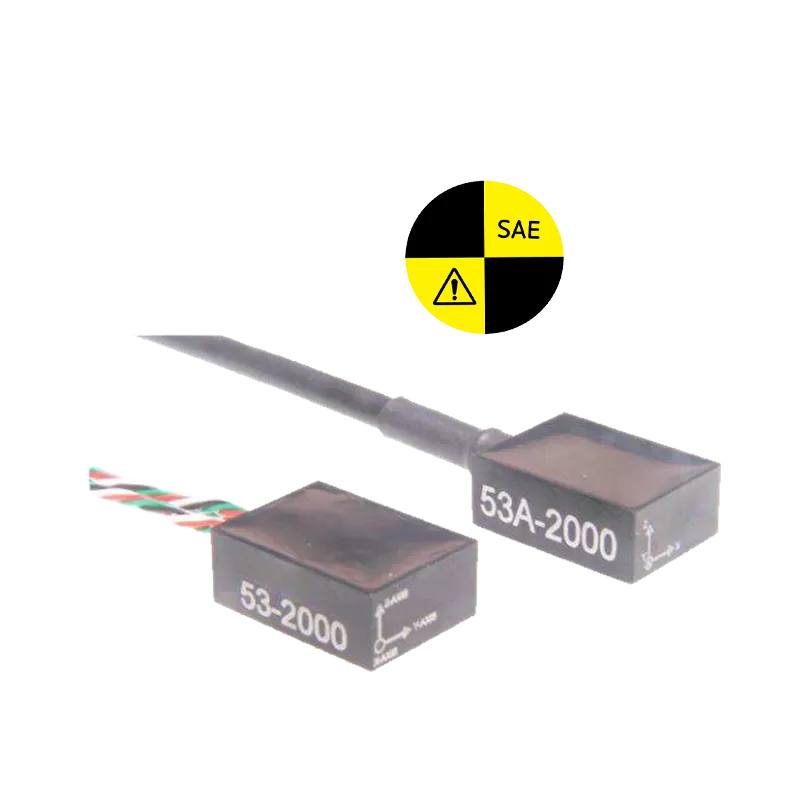

53 | 53A Auto Safety Testing Accelerometer
Small, compact triaxial Accelerometer designed for vehicle impact and road testing
About the 53 | 53A Auto Safety Testing Accelerometer
The Model 53 Accelerometer is a small, compact triaxial device designed for vehicle impact and road testing. The accelerometer incorporates gas-damped MEMS sensing elements with mechanical stops for high overload protection. Featuring ranges from ±50g to ±2000g and frequency response to 5000Hz, this sensor is easily mounted in hard to reach places on vehicles under test.
Key features 53 | 53A
- -20 to +85°C Operating Range
- 2-10 Vdc Excitation
- ±50 mV Zero Measurand Output
- Gas Damping
- Mechanical Overload Stops
- Designed for Adhesive Mounting
Applications 53 | 53A
- Crash Testing
- Impact Testing
- Off Road Testing
- Vehicle Testing
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Cable, model 53 | #32 AWG Twisted Conductors, PFA Insulated |
| Cable, model 53a | #30 AWG Conductors PFA Insulated, Braided Shield, PU Jacket |
| Case material | Anodized Aluminum |
| Damping ratio | 0.5 / 0.5 / 0.3 / 0.05 |
| Frequency response | 0-1000 to 0-4500 Hz |
| Humidity | Epoxy Sealed, IP65 |
| Measurement range | ±50 g / ±200 g / ±500 g / ±2000 g |
| Non-linearity | ±1% |
| Operating temperature | -20°C to +85°C (-4°F to +185°F) |
| Output [supply voltage] | ±0.1 V [2 – 10 VDC] |
| Resonant frequency | 4000 - 26000 Hz |
| Sensitivity | 2 mV/g | 0.9 mV/g | 0.4 mV/g | 0.15 mV/g |
| Shock limit | 5000 g |
| Storage temperature | -40°C to +90°C (-40°F to +194°F) |
| Weight (without cable) | 3.5 g |
| Zero acceleration output | ±50 mV |
