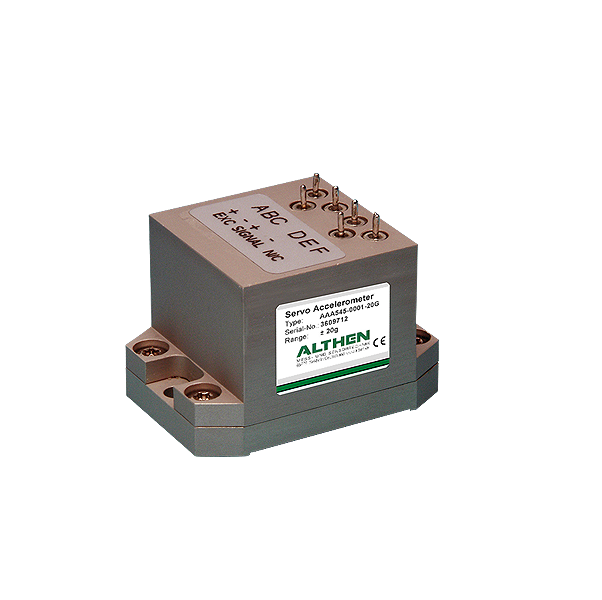

AAA545 Servo Accelerometer

Single-axis acceleration sensor in MEMS technology (2- and 3-axial also available)


About the AAA545 Servo Accelerometer

The AAA545 Series range of Solid State Accelerometers measure vector acceleration with high accuracy and incorporate a micro-machined piezo-resistive strain gauge bridge silicon sensor incorporating an air damping feature. Unlike fluid damped devices the air damping employed is essentially independent of temperature. The transducer also incorporates positive mechanical stops confering excellent shock resistance. The AAA545 is available in both single-axis and multi-axis versions.



Key features AAA545

  • Essentially zero temperature coefficent of damping ratio
  • Integral temperature compensation
  • DC input - DC output
  • High reliability



Applications AAA545

  • Data acquisition systems
  • Crash recorders
  • Fatigue life monitoring and prediction
  • Monitoring and controlling deceleration in mass transit systems
  • Road bed analysis and fault detection equipment for high speed railways
  • Military and civil flight simulators
  • Autopilots
  • Low frequency vibration monitoring

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Acceleration limit 400g for 2 to 10 g versions, 20 x range or 2000g, whichever is lower for other versions (any direction)
Compensated temperature 0°C to +50°C
Damping ratio 0.7 (±0.2) @ 25°C
Humidity/immersion IP65
Hysteresis ≤ 0.02%
Input current 5m A dc max.
Measurement range ±2g / ±5g / ±10g / ±20g / ±50g / ±100g
Non-linearity ±0.5%
Operating temperature -40°C to +105°C
Output [supply voltage] 16 - 36 mV [Single axis: 14,5 -27 VDC, 2- and 3-axial: 5VDC]
Resolution ≤ 0.0005%
Storage temperature -55°C to +130°C
Weight 40 g max.
