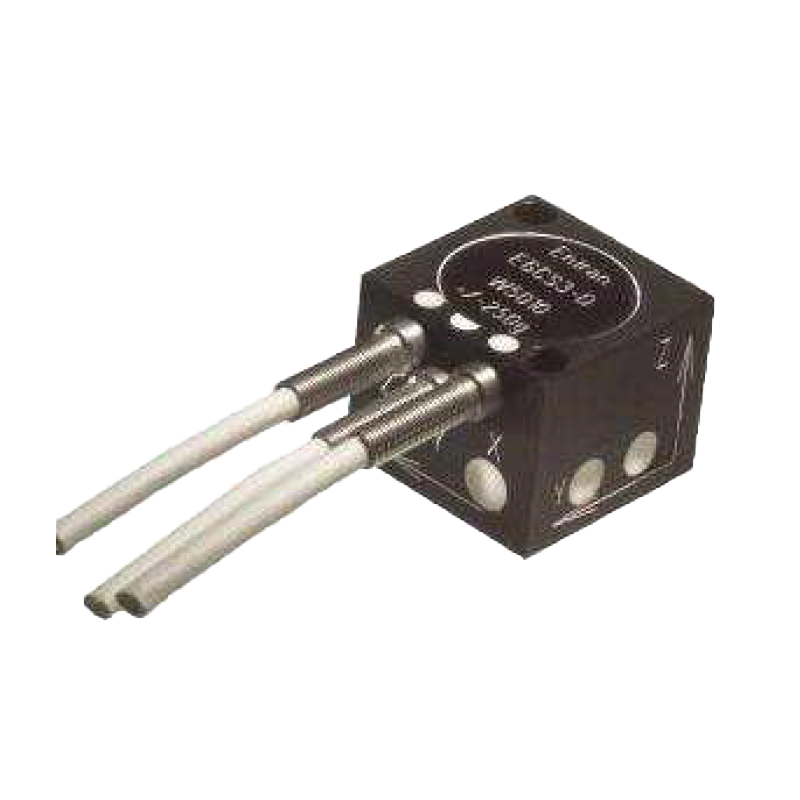

EGCS3 Triaxial High Sensitivity Heavy Duty Accelerometer
3-axial acceleration sensor in miniature design
About the EGCS3 Triaxial High Sensitivity Heavy Duty Accelerometer
The Model EGCS3 triaxial accelerometer is available in ranges from ±2g through ±5000g. With over-range limit to ±10,000g and spring strain relief, this rugged device is ideal for offshore, downhole and shock testing applications. Its small size and screw mounting ensure ease of installation while its low power requirements and DC output facilitate integration into data acquisition and monitoring systems. The EGCS3 also features CE Conformance to EN 61010-1, EN 50081-1 and EN 50082-1.
Key features EGCS3
- ±2g to ±5000g Dynamic Range
- Heavy Duty, Rugged
- Static and Dynamic Measurement
- DC to 4000Hz Frequency Response
- ±1% Non-Linearity
- -40 ºC to +120 ºC Temperature Range
- 10,000g Over-range Protection
Applications EGCS3
- Blast Testing
- Machine Control
- Performance Testing
- Engine Testing
- Road Vehicle Testing
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Ce conformance | EN 61010-1, EN 50081-1, EN 50082-1 |
| Compensated temperature | +20 to+80°C (+70 to +170°F) |
| Damping ratio | 0.7 |
| Damping ratio at 20°c (70°f): | 0.7 nom. (0.5 to 0.9) |
| Frequency response ±1/2db nom./min. | 0 to 90/50 Hz - 0 to >4000/2400 Hz |
| Measurement range | ±2 g / ±5 g / ±10 g / ±25 g / ±50 g / ±100 g / ±250 g / ±500 g / ±1000 g / ±2500 g / ±5000 g |
| Natural frequency | 170 - >8000 Hz |
| Non-linearity | ±1 % |
| Operating temperature | -40 to +120°C (-40 to +250°F) |
| Output [supply voltage] | ±200 mV |
| Overrange limit | ± 200 g / 500 g / 1000 g / 2000 g / 5000 g / 10000 g |
| Overrange stops | Integral |
| Sensitivity | A: 2500 mV/g | 1000 mV/g | 500 mV/g | 200 mV/g | 100 mV/g | 50 mV/g | 20 mV/g | 10 mV/g | 5 mV/g | 2 mV/g | 1 mV/g B: 1250 mV/g | 500 mV/g | 250 mV/g | 100 mV/g | 50 mV/g | 25 mV/g | 10 mV/g | 5 mV/g | 2,5 mV/g | 1 mV/g | 0,5 mV/g |
| Zero offset at 20°c | A = ±250 mV typ | B = ±250 mV typ | D = ±15 mV typ |
