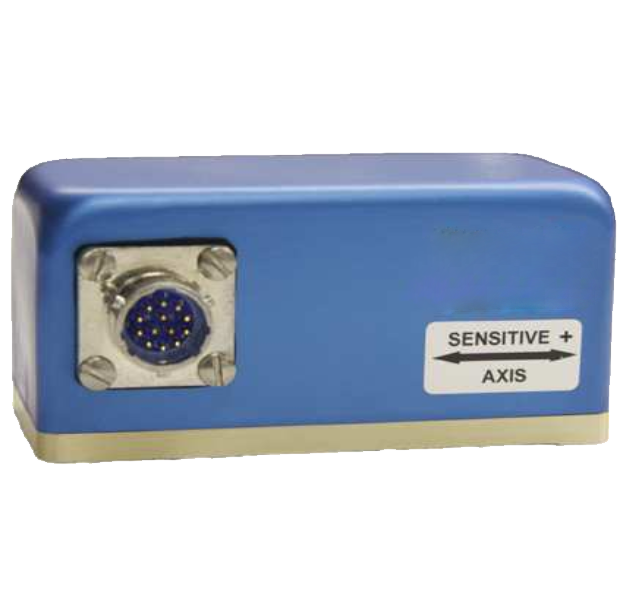

DXA-100/200 Series Servo Accelerometer
Digital Output - Single or Dual Axis for a wide variety of applications
Key features
- Mechanical Shock 1500g 1msec half sine
- Industry Standard EIA-RS485 and EIA-RS422 output
- For use in high shock and vibration environments
- High Precision and Performance
- Low Noise
About the DXA-100/200 Series
The DXA-100/200 Series single or dual digital accelerometers take the highly accurate analog closed loop sensor technology to the next level.
Key features DXA-100/200 Series
- Digital output
- Resolution 8 μg
- Mechanical Shock 1500g 1msec half sine
- Industry Standard EIA-RS485 and EIA-RS422 output
- For use in high shock and vibration environments
- High Precision and Performance
- Low Noise
Applications DXA-100/200 Series
- Radar/Antenna Control
- Structural Monitoring
- Linear Acceleration/Deceleration Measuring
- Automatic Train Position Control
- Seismic Monitoring
- Platform Leveling
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Not transmitting: DXA-100(-R) 22 mA / DXA-200(-R) 40 mA | |
| Baud rate | 19200 / 38400 / 57600 / 115200 / 230400 |
| Housing material | Anodized Aluminum |
| Input current (max) | Transmitting: DXA-100(-R) 32 mA / DXA-200(-R) 50 mA |
| Measurement range | ±0.25 g / ±0.50 g / ±0.87 g / ±1.00 g / ±2.00 g |
| Nema enclosure rating | 6 |
| Non-linearity | 0.02% - 0.05% |
| Operational temperature | -40°C to +85°C |
| Output [supply voltage] | RS485, RS422 [10 - 30 VDC] |
| Output representation | g |
| Protection class per iec 529 | IP67 |
| Protocol | Proprietary (Custom) |
| Scale factor tolerance | 0.05 % Max |
| Shock survival | 1500g, 1msec, ½ sine |
| Storage temperature | -40°C to +85°C |
| Vibration survival (20hz to 2 khz) | 20 g |
| Weight | DXA-100(-R): 226.80 g [8 oz] / DXA-200(-R): 283.50 g [10 oz] |
