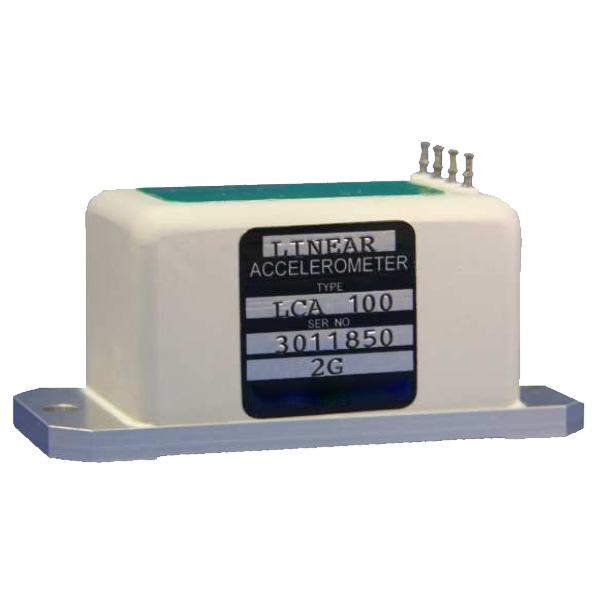

LCA-100 Servo Accelerometers
Single axis acceleration sensor that is DO-160 approved for aerospace applications
About the LCA-100 Servo Accelerometers
The LCA-100 Series Accelerometer is a general-purpose ±0.5g to ±5g device designed for industrial, commercial and aerospace sensing requirements.
Key features LCA-100
-
Filtering Available
-
Available in 28V Aircraft Input
-
Connector or Pin Configuration
-
0.20% 10-year Scale Factor Stability
-
Wide Bandwidths for Higher RangeApplications
Applications LCA-100
- Aircraft Flight Controls
- Aircraft Fatigue Monitoring
- Train
- Performance Testing
- Aircraft Autopilot System Input
- Aircraft Winds-shear Detection
- Double Integrated Railcar Position
- Rail Automated Train Controls
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bandwidth (-3 db) (nom) | 60.0 Hz |
| Input current (max) | 25 mA |
| Measurement range | ±0.5 g / ±1.0 g / ±2.0 g / ±5.0 g |
| Natural frequency (nom) | 60.0 Hz |
| Operating temperature | -55°C to +85°C |
| Output [supply voltage] | ±5.0 VDC [±12 to ±18 VDC] |
| Resolution and threshold (max) | 10 μg |
| Seal | MIL-STD-202, Mtd. 112 |
| Shock | 100g, 0.011 sec, ½ sine |
| Stability | 0.20% 10-year Scale Factor |
| Storage temperature | -60°C to +90°C |
| Vibration | 0 g |
