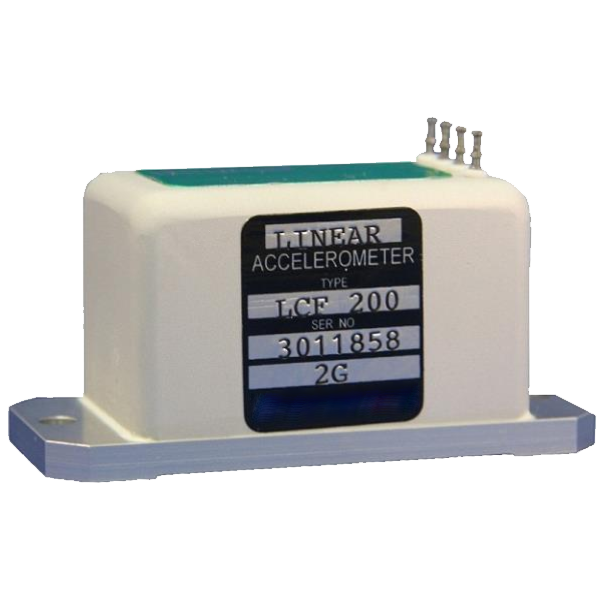

LCF-200 Servo Accelerometers

Exeptional bias & scale factor acceleration sensor


About the LCF-200 Servo Accelerometers

The LCF-200 Series Flexure Suspension Fluid Damped Accelerometer is a ±0.5G to ±5G device designed for applications where high levels of shock and vibration are present. LCF units are characterized by excellent turn on repeatability and very low hysteresis.

Key features LCF-200

  • ±0.5g to ± 5.0g Full Range
  • Filtering 5 to 100 Hz Bandwidth
  • Exceptional Bias & Scale Factor
  • High Level
  • ± Vdc Output
  • 1,500g Shock Capability



Applications LCF-200

  • Geophysical Testing
  • Railcar Acceleration Control
  • Railcar Deceleration Control
  • Ocean Buoy Acel Sensing
  • Aircraft Stability Control
  • Aircraft Flight Testing
  • Vehicle Roadway Profiling

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Bandwidth (-3 db) (nom) 30.0 Hz
Bias ± 0.005 g
Input current (max) 15 mA
Measurement range ±0.5 g / ±1 g / ±2 g / ±5 g
Natural frequency (nom) 30.0 Hz
Operating temperature -40°C to +80°C
Output [supply voltage] ±5.0 VDC [±12 to ±18 VDC]
Resolution and threshold (max) 1 μg
Seal MIL-STD-202, Mtd. 112
Shock 1000 g, 1 msec, ½ sine
Storage temperature -40°C to +90°C
Vibration 20 g
Weight 4 oz
