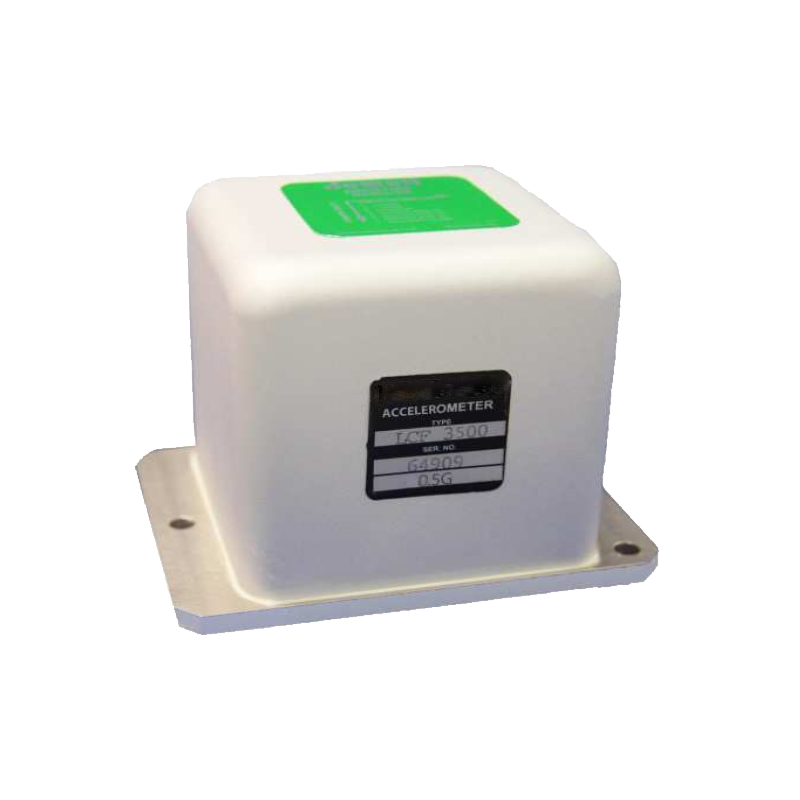

LCF-3500 Servo Accelerometers

3-axis servo acceleration sensor with exceptional bias and scale factor, for high shock and vibration environments


About the LCF-3500 Servo Accelerometers

The LCF-3500 Series Flexure Suspension Fluid Damped Tri-Axial Accelerometer is a ±0.5G to ±5G device designed for applications where high levels of shock and vibration are present. LCF units are characterized by excellent turn on repeatability and very low hysteresis.

Key features LCF-3500

  • Filtering 5 to 100 Hz Bandwidth Available
  • Exceptional Bias & Scale Factor
  • Tri-Axis

Applications LCF-3500

  • Geophysical Testing
  • Railcar Acceleration Control
  • Railcar Deceleration Control
  • Ocean Buoy Acceleration Sensing
  • Aircraft Stability Control
  • Aircraft Flight Testing
  • Vehicle Roadway Profiling
  • Tri-Axis Acceleration Applications
  • Aircraft Flight Data Recorder

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Bandwidth (-3 db) (min) 30 Hz
Input current (max) ±45 mA
Measurement range ± 0.50 g / ± 2.0 g / ± 5.0 g
Natural frequency (min) 30 Hz
Non-linearity 0.05%
Operating temperature -40°C to +80°C
Output [supply voltage] ±5.0 VDC [±12 to ±18 VDC]
Resolution and threshold (max) 10 μg
Seal Epoxy
Shock 1000g, 1 msec, ½ sine
Survival temperature -60°C to +90°C
Vibration 20 g
