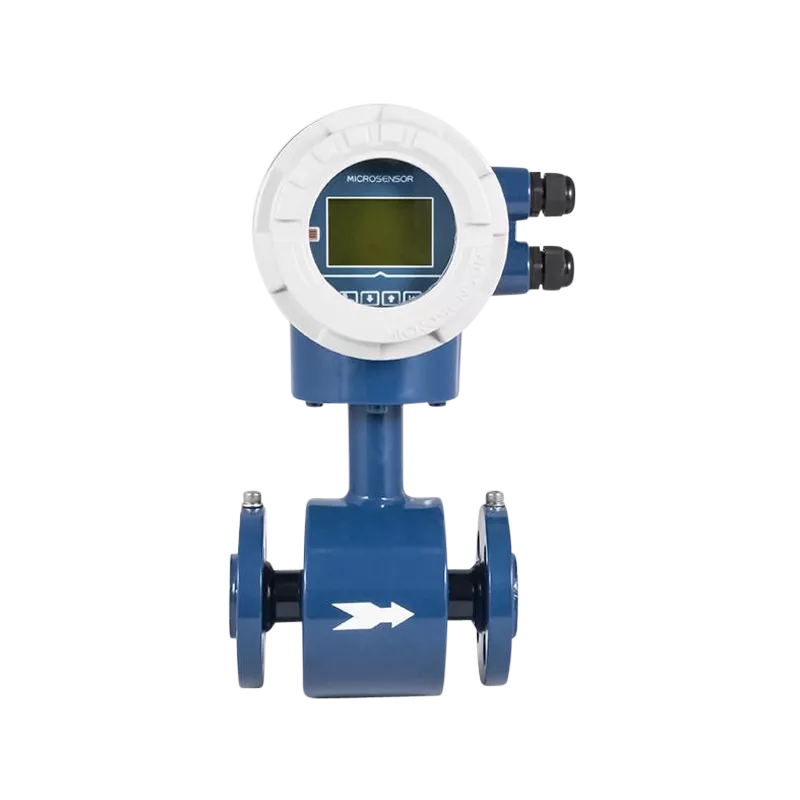

MFE600E Electromagnetic flowmeter
Exceptional accuracy, reliability, stability, and a long service life.
Key features
- Unaffected by fluid properties
- No pressure loss
- Dual Measurement
- High Sensitivity.
About the MFE600E Electromagnetic flowmeter
The MFE600E Series Electromagnetic flowmeter is engineered and produced utilizing the most advanced technology available both domestically and internationally. This flow indicator offers exceptional accuracy, reliability, stability, and a long service life.
- Unaffected by fluid properties: accurate measurement regardless of fluid density, viscosity, temperature, pressure, or conductivity changes.
- No pressure loss: Open flow design with no moving parts, ensuring zero pressure loss.
- Dual measurement: Simultaneously measures flow and pressure with integrated pressure capability.
- High sensitivity: Excellent response to transient pulsating flow with precise linearity and no mechanical inertia.
Development and production
Every aspect of this flowmeter's or flow transmitter's development is meticulously crafted, from structural design and material selection to manufacturing, assembly, and rigorous factory testing. Our calibration process includes a water tower with a height of up to 37 meters, acting as a pressure stabilizer for real-world flow calibration. Our dedicated production line for the Electromagnetic flowmeter is complemented by proprietary software and hardware designed for mass production, ensuring consistent high quality over prolonged use.
Features and functionality
The MFE600E flow indicator features a backlit, wide-temperature-range LCD display that provides clear, easy-to-read information. Its comprehensive functionality, intuitive interface, and user-friendly operation simplify on-site installation, operation, and maintenance.
Applications
The MFE600E flow sensor is versatile and can be effectively applied across various industrial sectors, including:
- petroleum
- chemical
- metallurgy
- water supply and drainage
- steel
- coal
- paper
- food
- textiles
- environmental protection
- municipal and water conservancy projects.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Diameter | Flange type: DN6~DN1600, ≥DN20 with built-in grounding electrode; Wafer type: DN25~DN200; Threaded type: DN10~DN50; Clamp type: DN15~DN150 |
| Explosion-proof | Integrated: Explosion-proof (optional) Ex d ib mb IIC T4 Gb; Separated: non-flameproof |
| Measurement accuracy | ±0.2%(DN10~DN350); ±0.5%(DN6~DN1600) |
| Pressure port | ANSI 1/2 NPT, JIS G1/2, ISO M20 ×1.5 |
| Electrode type | Standard fixed electrode, antifouling electrode; DN6~DN20: a pair of measuring electrodes, no grounding electrodes; DN25~DN500: a pair of measuring electrodes and a pair of grounding electrodes; ≥DN600: 2 pairs of measuring electrodes and a pair of grounding electrodes |
| Structure type | Integrated type, separated type (cable length of separated type≤100m) |
| Rated pressure | GB: PN6, PN10, PN16, PN25, PN40, PN63, PN100; ANSI: CLASS 150, CLASS 300, CLASS 600; DIN: PN6, PN10, PN16, PN25, PN40, PN63, PN100; JIS: 10K, 20K, 40K; Others: customizable |
| Electrode material | 316L, Ti, HB/HC, Ta, WC, Pt |
| Lining material | Neoprene (CR), Natural Rubber (NR), Polyurethane Rubber (PU), Polytetrafluoroethylene (PTFE), F46,PFA |
| Measured pipe | Stainless steel 06Cr19Ni10(304),304 ASTM,SUS 304 |
| Flange/body flange | Carbon steel (standard), stainless steel (optional) 06Cr19Ni10(304),304 ASTM,SUS 304 |
| Converter housing | No Ground ring DN20 and below,Grounding ring material same as measuring electrode |
| Ground Ring Form | Aluminum die-casting |
| Power supply | 100V AC~240V AC, 24V DC,12V DC; 3.6V Battery supply (RS485 output, without 4mA~20mA, wireless output, frequency/pulse output, and the frequency/pulse output is used only for calibration or calibration purposes.) |
| Output signal | 4mA~20mA DC (4mA to 0m³; 20mA to full scale) load resistance 0Ω~750Ω, active output; Hart, Frequency, pulse output (Passive, active output optional) Upper and lower limit alarm output; RS485 ( Modbus protocol), Hart and RS485/RS232 outputs cannot exist at the same time; Profibus-DP; 4G wireless transmission |
| Electrical connection | ISO M20×1.5 |
| IP protection | IP65; IP67; IP68 |
| Power consumption | ≤5W |
| Environmental temp. | -20°C ~60°C |
| Storage temp. | -40°C ~60°C |
| Relative humidity | 5%~90% |
