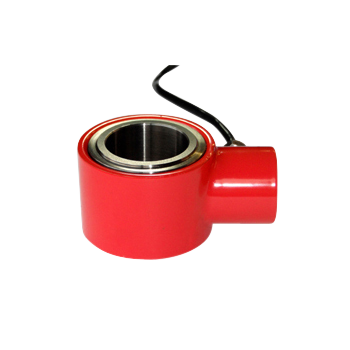

ALF210 Donut Ring Force Sensor
Ideally suited to engineering force measurements (center safety testing of cables, rods and bolts)
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 700 Ω |
| Creep - 20 minutes | ±0.05% AL |
| Excitation voltage - maximum | 20V |
| Excitation voltage - recommended | 10V |
| Force direction | Compression |
| Hysteresis | ±0.5% RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Measurement range | 7.5kN, 10kN, 15kN, 25kN, 50kN |
| Non-linearity - terminal | ±0.5% RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 400% RL |
| Rated output - nominal | 1.2mV/V |
| Rated output - rationalised | 1.0mV/V |
| Rationalisation tolerance | ±0.5% RL |
| Repeatability | ±0.02% RL |
| Sealing | IP65 |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.03% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Weight - nominal (excluding cable) | 240 to 280g |
| Zero load output | ±4% RL |
