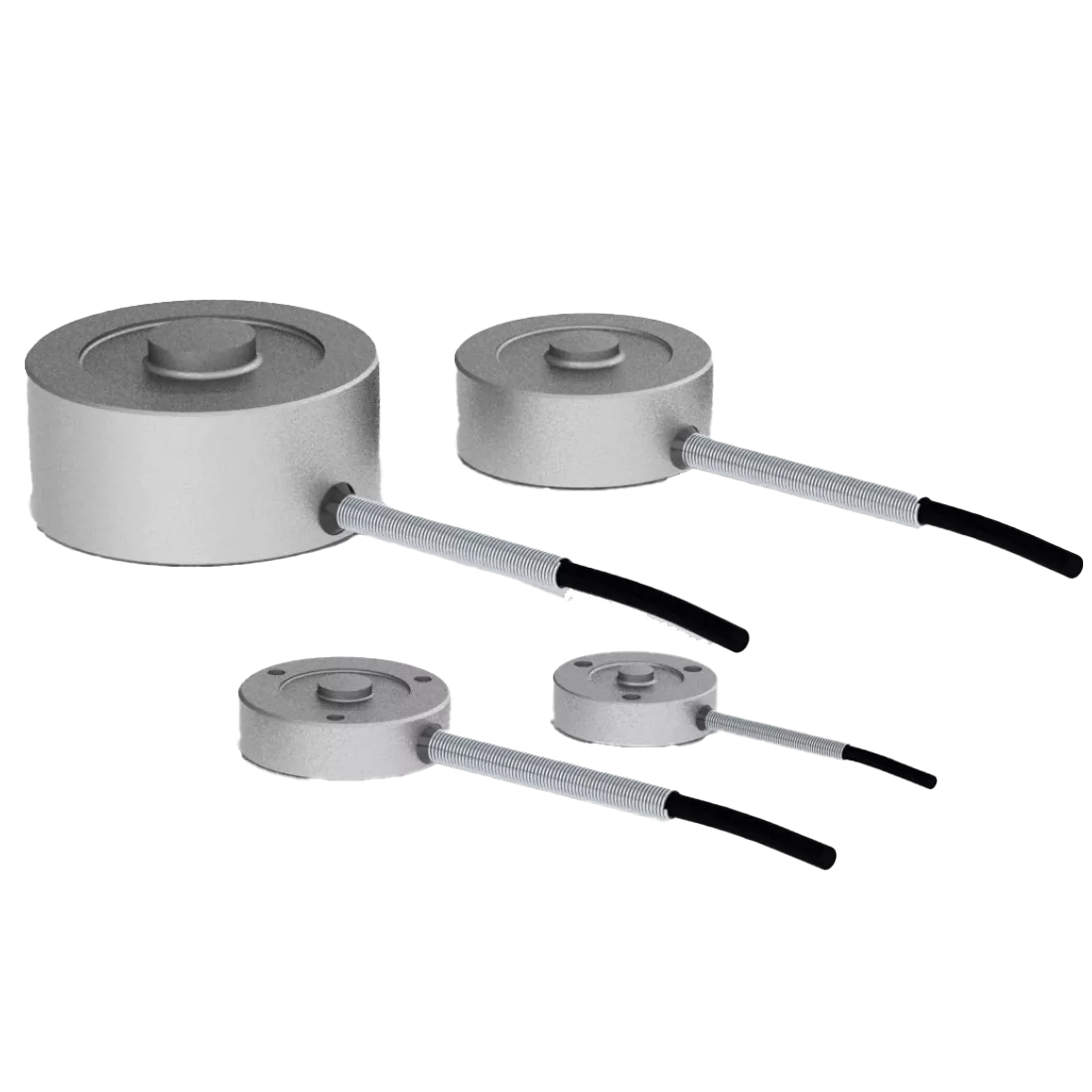

ALBM Button Load Cell

Button Load Cells are strain gage based transducers with temperature compensation and excellent overall performance.

3D Stepfile viewer

Benefit from

  • Realistic representation and better visualisation of space
  • Early detection of installation problems
  • Valuable data for subsequent processes
  • Improvement of technical documentation
 View technical specifications

Key features

  • Excellent overall performance
  • Range of capacities up to 150 kN or 30 klb
  • Ease of mounting

About the ALBM Button Load Cell

Button Load Cells are strain gage based transducers with temperature compensation and excellent overall performance. This type provides a range of capacities up to 150 kN or 30 klb with better than ±0.5% (full scale) non-linearity. Three tapped holes are provided on the underside for ease of mounting. Fully welded cover, amplified and digitised versions are available on request.

Why ALBM Button Load Cell Sensors?

  • Tailored Solutions: We specialize in customizing sensors to meet your specific needs, ensuring the perfect fit for your application.
  • Comprehensive Warranty: Enjoy peace of mind with our standard 12-month warranty on all products.
  • Recalibration Services: Maintain accuracy and reliability with our professional recalibration services.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

ALBM Button Load Cell

 Talk to an expert

Product downloads

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Capacity (metric) (N) 100, 200, 500, 1K, 2K, 5K, 10K, 15K, 20K, 50K, 100K, 150K, 200K
Capacity (lb) 25, 50,100, 250, 500, 1K, 2K, 3K, 4K, 5K, 7.5K, 10K, 15K, 20K, 30K, 50K
Allowable Maximum Load (%) 150 full scale
Non-Linearity (%) ±0.5 FS max.
Hysteresis (%) ±0.3 FS max.
Repeatability (%) ±0.1 FS max.
Total Error (%) ±0.8 FS max.
Zero Temperature Coefficient (%) 0.01 FS/°C
Span Temperature Coefficient (%) 0.02 of load/°C
Compensated Temperature (°C) -15 to +70
Operating Temperature (°C) -20 to +80
Output (mV/V) 2 nominal (1 for 100N and 25lbf)
