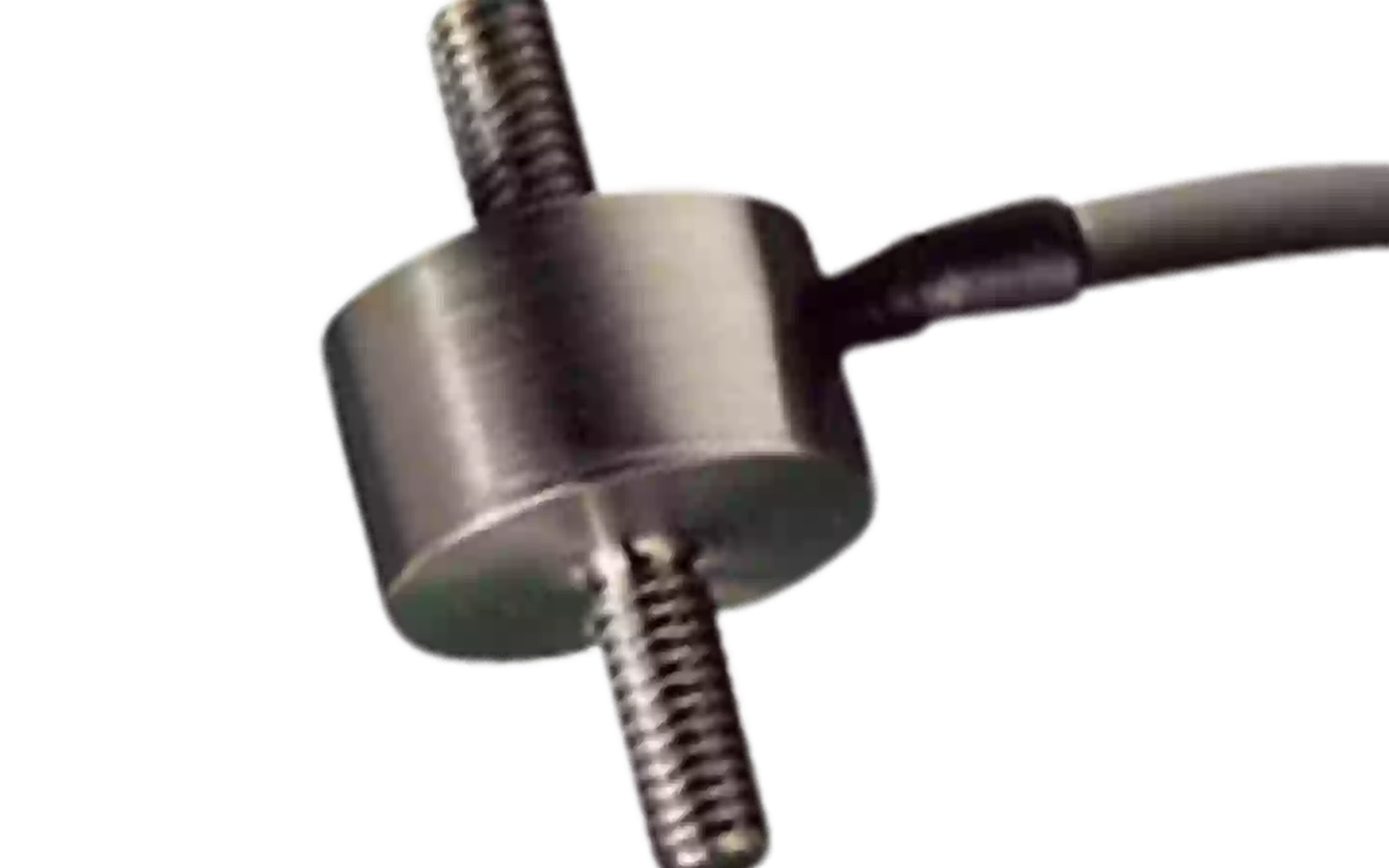

ALF255 Miniature Force Sensor
Ideally suited for force measurement in confined spaces
Key features
- Miniature diaphragm loadcell
- Measurement ranges: 100N, 200N, 400N, 800N, 1.6kN, 3.2kN, 6.4kN
- Tension, compression and bi-directional
- Non-lin./hysteresis: 0.5/0.5% RL
- Dimensions (mm): ø30 x 25
- Easy installation
- Hardened stainless steel body
- Sealed to IP65
About the ALF255 Miniature Diaphragm Force Sensor
The ALF255 is ideally suited to force measurements in confined spaces in both tension and compression for control of critical parameters in all kinds of industrial processes. Their versatility is such that they are also applied in a great number of important fields of scientific and engineering test work, mobile as well as workshop, static and dynamic.
Geometry: Very small loadbutton cell for force measurement in confined spaces. Used in compression and/or tension on a wide range of OEM or end-user applications.
With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.
Application area
- Industrial process
- Scientific and engineering test work
Other Features ALF255
- Tension / compression / bi-directional calibration
- Traceable calibration with certificate
- Included in the standard price
- Standard 2 year warranty
All standard ranges are manufactured in stainless steel.
When this loadcell is rationalised the resistors are housed in a capsule located in the loadcell cable 100mm from the free end. Capsule dimensions are Ø10mm by 57mm.
Notes
1. AL = Applied load. 3. Temperature coefficients apply over the compensated range.
2. RL = Rated load. 4. The load must be applied directly through the central loading axis.
Connections
The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-1-4C.
Excitation + = Red Signal + = Yellow Screen = Orange
Excitation - = Blue Signal - = Green
Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for operation up to +250°C. Please consult our engineering department.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 350 Ω |
| Creep - 20 minutes | ±0.1, % AL |
| Excitation voltage - maximum | 10V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.5, % RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Load direction | Tension, compression, bi-directional |
| Measurement ranges | 100N, 200N, 400N, 800N, 1.6kN, 3.2kN, 6.4kN |
| Non-linearity - terminal | ±0.5, % RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 100 % RL |
| Rated output - nominal | 1.6, mV/V |
| Rated output - rationalised | 1.0, mV/V |
| Rationalisation tolerance | ±0.5, % RL |
| Repeatability | ±0.1, % RL |
| Sealing | IP65 |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.03% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Zero load output | ±4, % RL |
