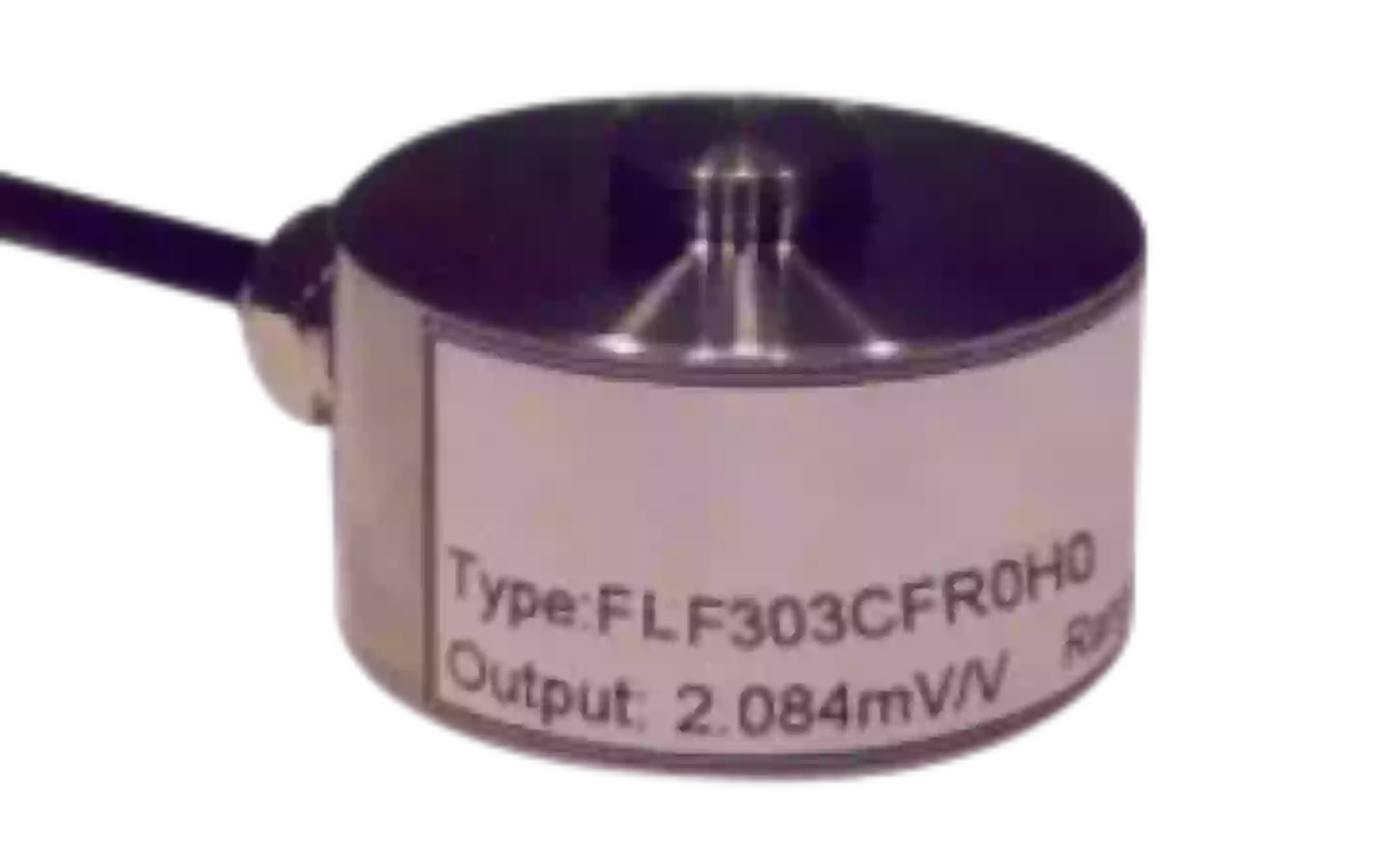

ALF303 Miniature Force Sensor

Low cost axial force sensor

View technical specifications

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Bridge resistance 350 Ω
Creep - 20 minutes ±0.1% AL
Excitation voltage - maximum 10V
Excitation voltage - recommended 10V
Hysteresis ±2.0% RL
Insulation resistance - minimum at 50vdc 500 MΩ
Load direction Compression
Measurement range 20kN, 40kN
Non-linearity - terminal ±2.0% RL
Overload - safe 50% RL
Overload - ultimate 200% RL
Rated output - nominal 2 ±20%mV/V
Rated output - rationalised 2.0mV/V
Rationalisation tolerance ±1% RL
Repeatability ±0.1% RL
Sealing IP65
Temperature effect on rated output per °c ±0.04% AL
Temperature effect on zero load output per °c ±0.05% RL
Temperature range - compensated -10 to +50°C
Temperature range - safe -10 to +80°C
Weight - nominal (excluding cable) 120g
Zero load output ±6% RL
