  5. ELAF Miniature Force Sensor

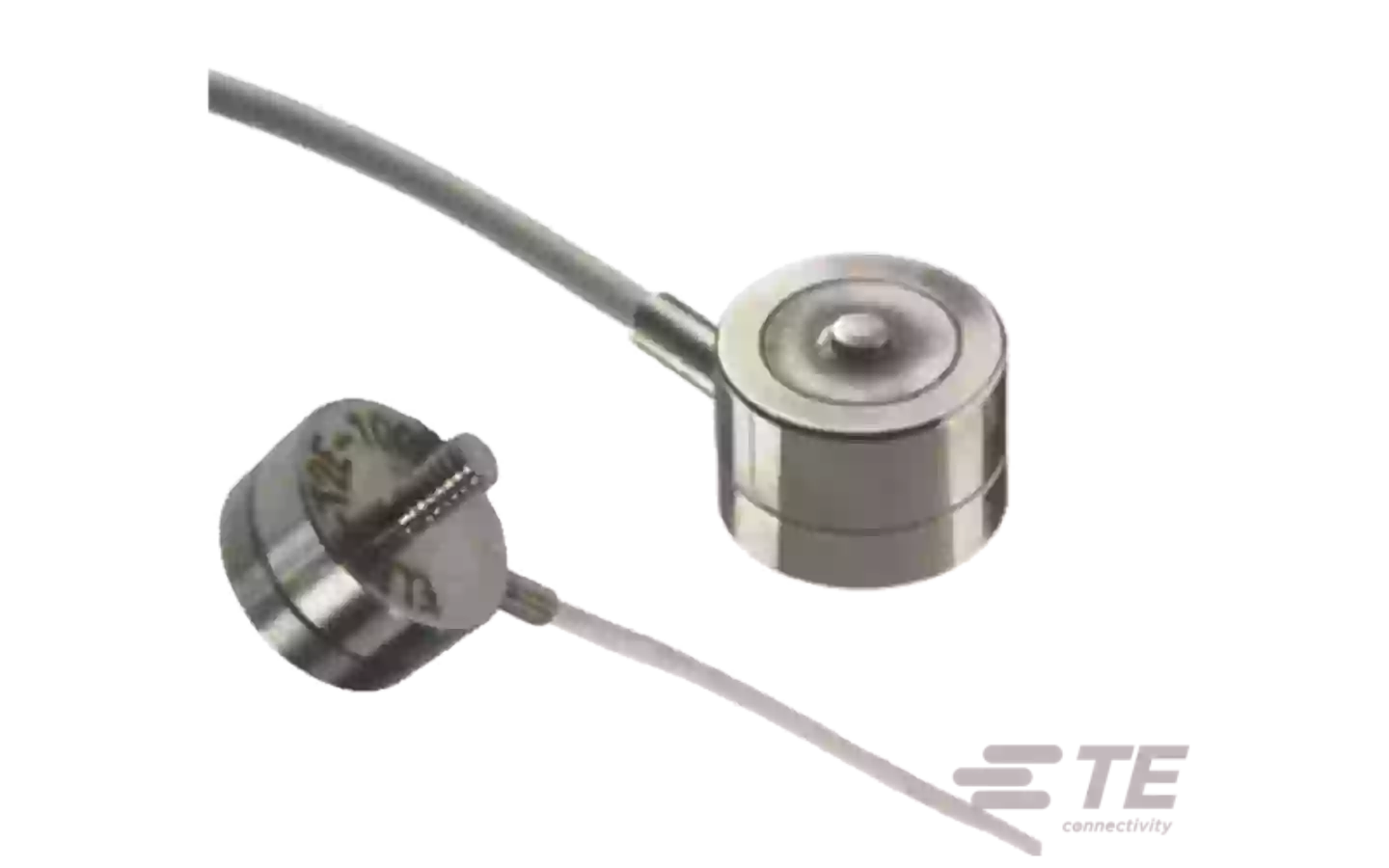

ELAF Miniature Force Sensor

High performance at low cost


Key features

  • Low cost
  • Optional high level output
  • Small, low profile design
  • Low noise
  • Robust: high over range
  • High reliability
  • Low deflection
  • Low off-axis response

About the ELAF Miniature Force Sensor

The ELAF series compression and tension load cells raise the bar for high performance at low cost.

The ELAF series load cell employs micro-machined piezo-resistive strain gauges fused with high temperature glass to a high performance stainless steel force measuring flexure. This technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. Operating at very low strains, it utilizes strain gauges providing gauge factors greater than 100, essentially unlimited cycle life expectancy, superior resolution, exceedingly high over-range capabilities (without the need for stops) and an amplified ratiometric high level 0.5 to 4.5 V output or 20 mV/V bridge output. ELAF sensors are suitable for your test and measurement applications. From the ultra compact 0.5” diameter B0 and T1 design to the high range 1.25” diameter B2 package, the ELAF provides exceptional flexibility and superior performance.

Applications for ELAF

  • Theatrical rigging loads
  • Assembly forces
  • Weighing
  • Tool forces
  • Thrust measurements
  • Batch weighing
  • Robotics end effectors
  • Product validation testing
  • Material test
  • Hoist and winch loads

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.25 of FS
Housing material Stainless steel
Load direction Compression, tension
Measurement range 50N, 125N, 250N, 500N, 1.25kN, 2.5kN, 5kN, 10kN
Operating temperature -40 – 120°C
Output signal .5 – 4.5 V, ±20 mV/V
Sealing IP65
