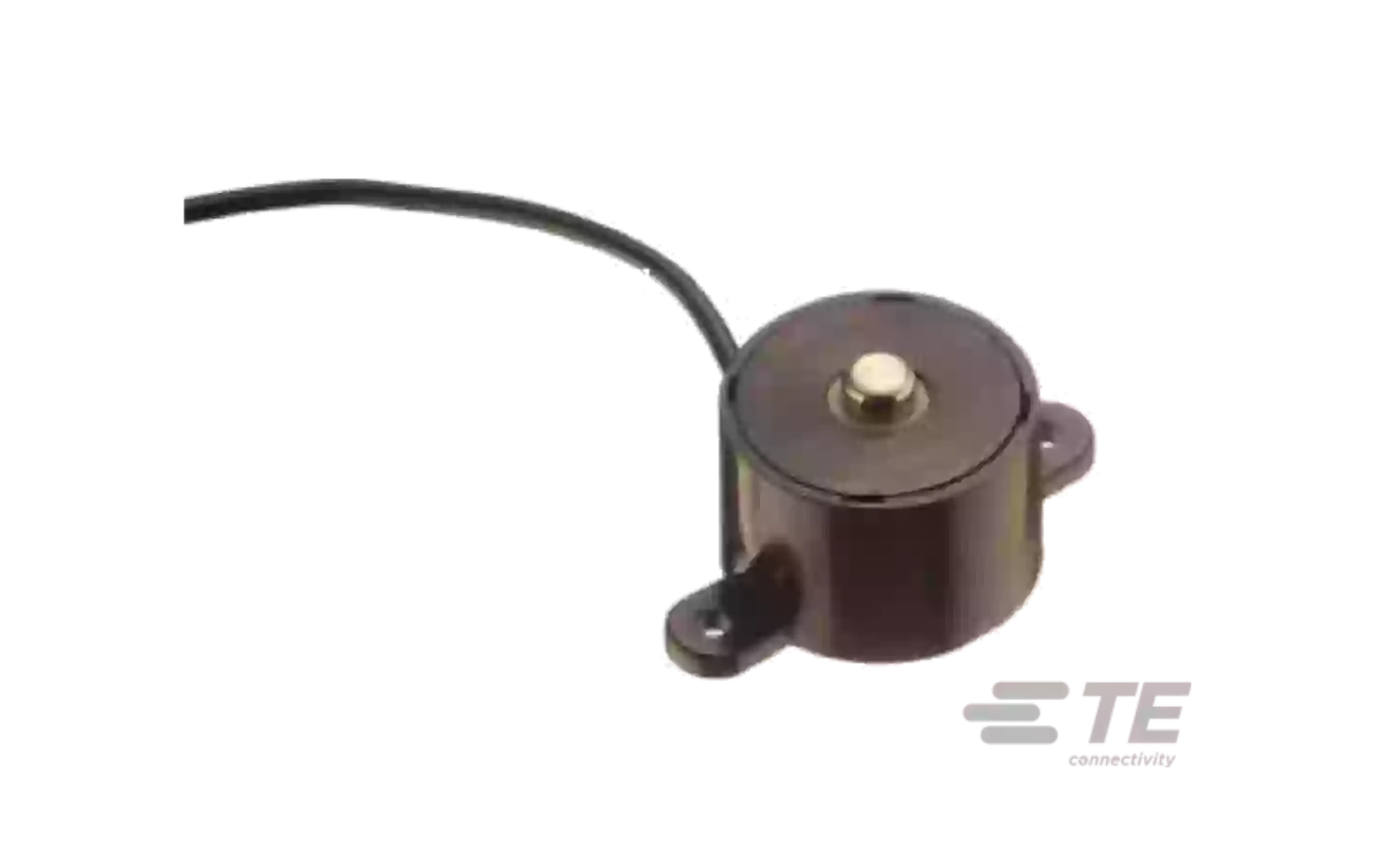

FC22 Miniature Force Sensor

Full scale range 50N - 500N


Key features

  • Low noise
  • Robust: High over-range capability
  • High reliability
  • Low deflection
  • Essentially unlimited cycle life expectancy
  • Low off center errors
  • Fast response time
  • High level or millivolt outputs

About the FC22 Miniature Force Sensor

The FC22 is a medium compression force sensor that creates new markets previously unrealizable due to cost and performance constraints. The FC22 offers normalized zero and span for interchangeability and is thermally compensated for changes in zero and span with respect to temperature.

The FC22 incorporates proprietary Microfused™ technology which employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused™ technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. The FC22 measures direct force and is therefore not subject to lead-die fatigue failure common with competitive designs which use a pressure capsule embedded within a silicone gel-filled cavity. Operating at very low strains, Microfused™ technology provides an essentially unlimited cycle life expectancy, superior resolution, and high over-range capabilities.

The FC22 brings your OEM product to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, our dedicated design team at our Load Cell Engineering Center is ready to provide you with custom designs for your OEM applications.

Please refer to models FS20 for lower force applications or the FC23 for higher force applications.

Other Features FC22

  • Compact easy to fixture design
  • Reverse polarity protected
  • Interchangeable

Applications for FC22

  • Medical infusion pumps
  • Robotics end-effectors
  • Variable force control
  • Load and compression sensing
  • Exercise machines
  • Pumps
  • Contact sensing
  • Weighing
  • Household appliances

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy (non linearity, hysteresis, and repeatability) ±1% span
Load direction Compression
Measurement range 50N - 500N
Operating temperature -40 – 85°C
Sensitivity shift ±.05% of FS
Span (amplified) 4V
Span (unamplified, fc2201) 30mV/V
Span (unamplified, fc2211) 20mV/V
Zero shift in ctr ±.05% of FS
