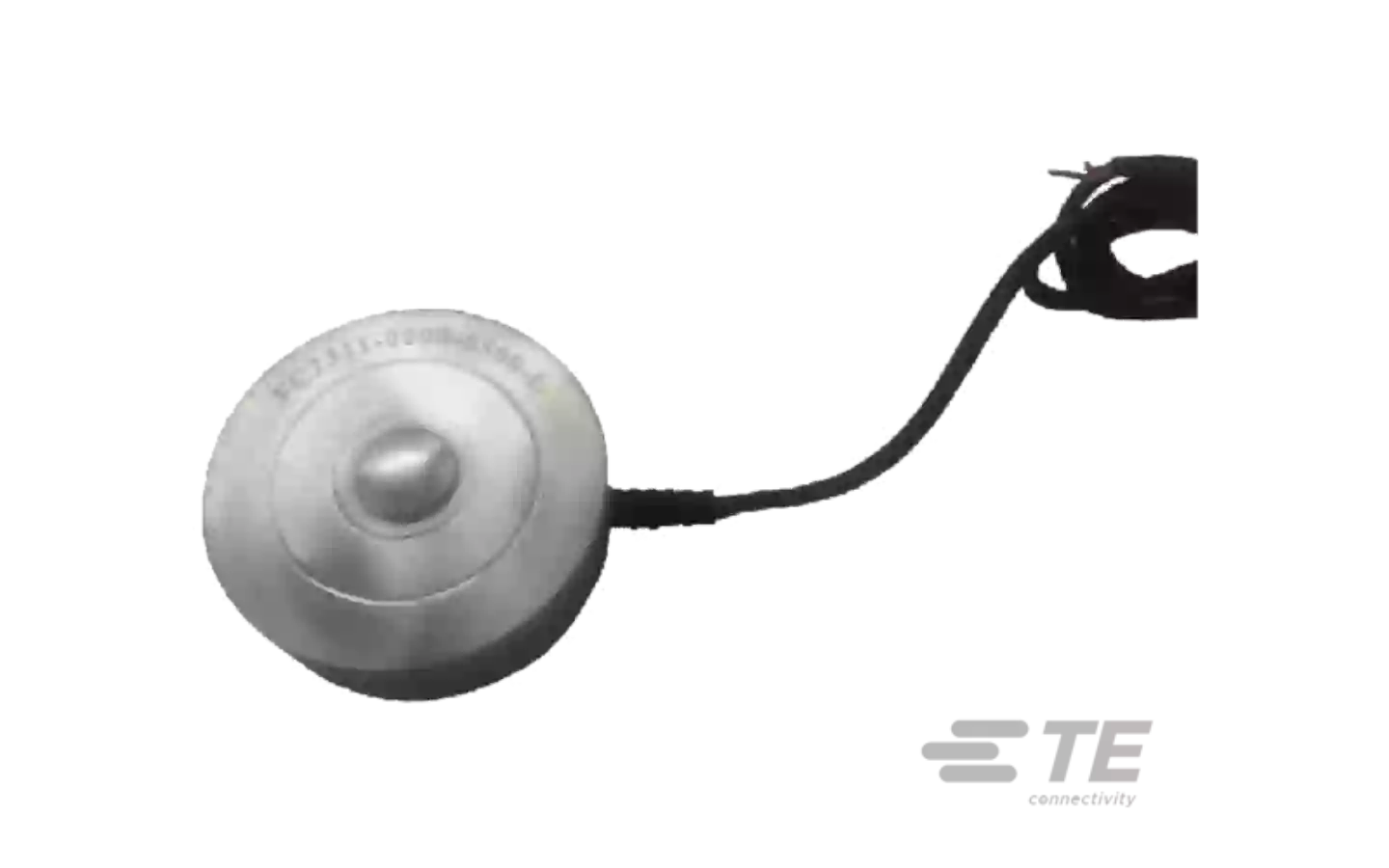

FC23 Miniature Force Sensor
Compact load button design
Key features
- Interchangeable
- Low noise
- Robust: High over range capability
- High reliability
- Low deflection
- Low off center errors
- Fast response time
- Long cycle life expectancy
About the FC23 Miniature Force Sensor
The FC23 is a high compression force sensor that creates new markets previously unrealizable due to cost and performance constraints. The FC23 offers normalized zero and span for interchangeability and is thermally compensated for changes in zero and span with respect to temperature.
The FC23 incorporates proprietary Microfused™ technology which employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused™ technology eliminates age) sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. The FC23 measures direct force and is therefore not subject to lead) die fatigue failure common with competitive designs which use a pressure capsule embedded within a silicone gel) filled cavity. Operating at very low strains, Microfused™ technology provides an essentially unlimited cycle life expectancy, superior resolution, and high over) range capabilities.
The FC23 brings your OEM product to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, our dedicated design team at our Load Cell Engineering Center is ready to provide you with custom designs for your OEM applications.
Please refer to models FS20 and FC22 for lower force applications.
Other Features FC23
- High level or millivolt outputs
- Compact load button design
Applications for FC23
- Batch Weighing
- Robotics End Effectors
- Variable Force Control
- Load and Compression Sensing
- Assembly Line Force Measurement
- Pumps
- Hoist and Winch Loads
- Weighing
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy (non linearity, hysteresis, and repeatability) | ±1% of FS |
| Load direction | Compression |
| Measurement range | 250N - 10kN |
| Operating temperature | -40 – 85°C |
| Output signal | 20 mV/V, 4 V |
| Sealing | IP65 |
| Sensitivity shift | ±.05% of FS |
| Zero shift in ctr | ±.05% of FS |
