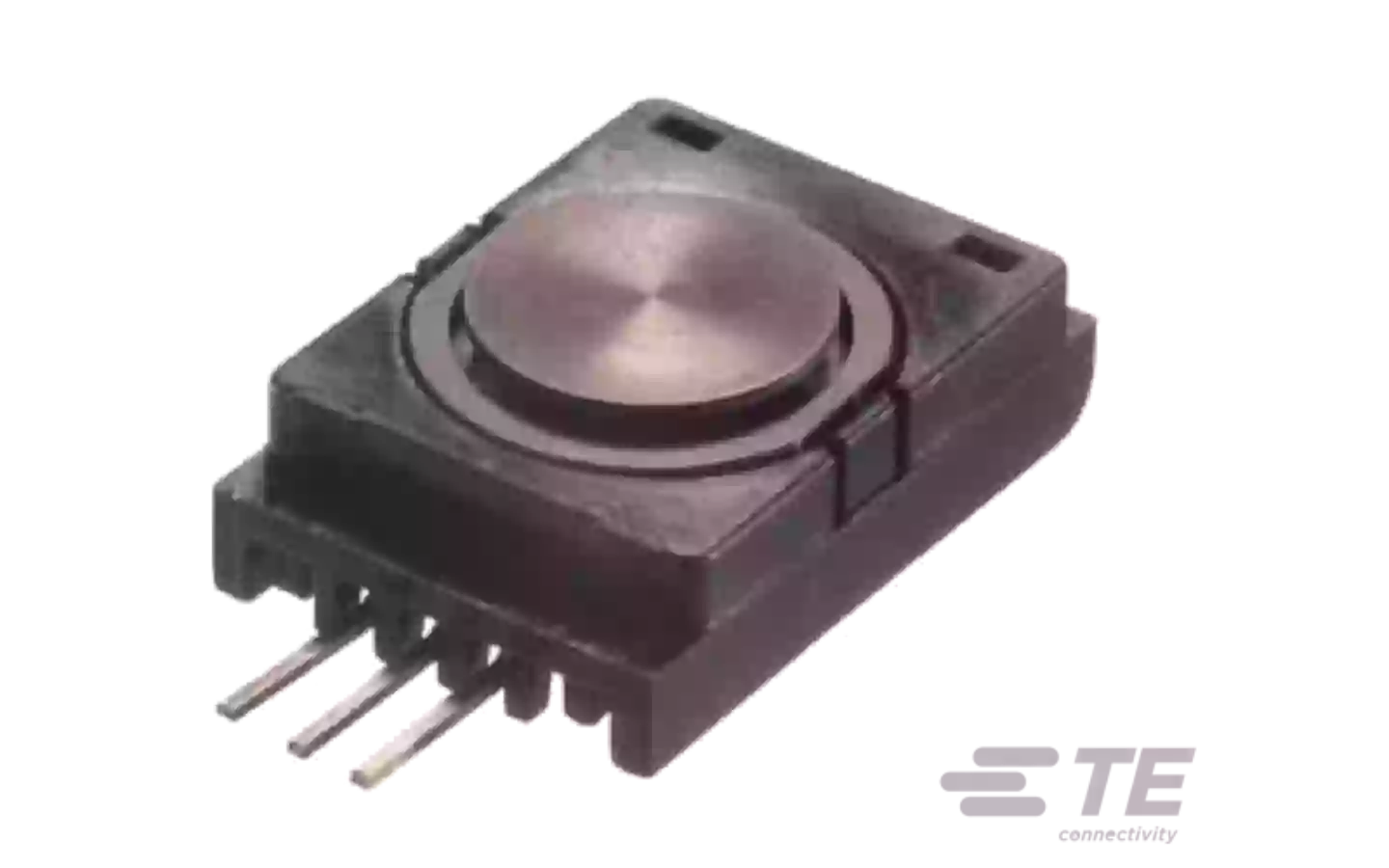

FS20 Miniature Force Sensor

Low compression force sensor


Key features

  • Robust: High Over-Range Capability
  • High Reliability
  • Low Deflection
  • Essentially Unlimited Cycle Life Expectancy
  • Low Off Center Errors
  • Fast Response Time
  • Industry Standard Packaging
  • Reverse polarity protected

About the FS20 Miniature Force Sensor

The FS20 is a low compression force sensor that creates new markets previously unrealizable due to cost and performance constraints. The FS20 offers normalized zero and span for interchangeability and is thermally compensated for changes in zero and span with respect to temperature.

The FS20 incorporates proprietary Microfused technology which employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. The FS20 measures direct force and is therefore not subject to lead-die fatigue failure common with competitive designs which use a pressure capsule embedded within a silicone gel-filled cavity. Operating at very low strains, Microfused technology provides an essentially unlimited cycle life expectancy, superior resolution, and high over-range capabilities.

The FS20 brings your OEM product to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, our dedicated design team at our Load Cell Engineering Center is ready to provide you with custom designs for your OEM applications.

Please refer to the FC22 and FC23 for higher force applications.

Features FS20

  • Small Size
  • Low Noise

Applications for FS20

  • Robotics End-Effectors
  • Variable Force Control
  • Load and Compression Sensing
  • Pumps
  • Contact Sensing
  • Weighing
  • Household Appliances

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±1% of FS
Creeping (3 minutes) ±0.5%
Hysteresis ±0.8%
Load direction Compression
Measurement range 5N - 30N
Non-linearity ±1%
Operating temperature -40 – 85°C
Output signal 3V, 4V
Sensitivity shift ±.05% of FS
Span repeat ±0.8%
Zero drift (3 minutes) ±0.5%
Zero return ±0.8%
Zero shift in ctr ±.05% of FS
