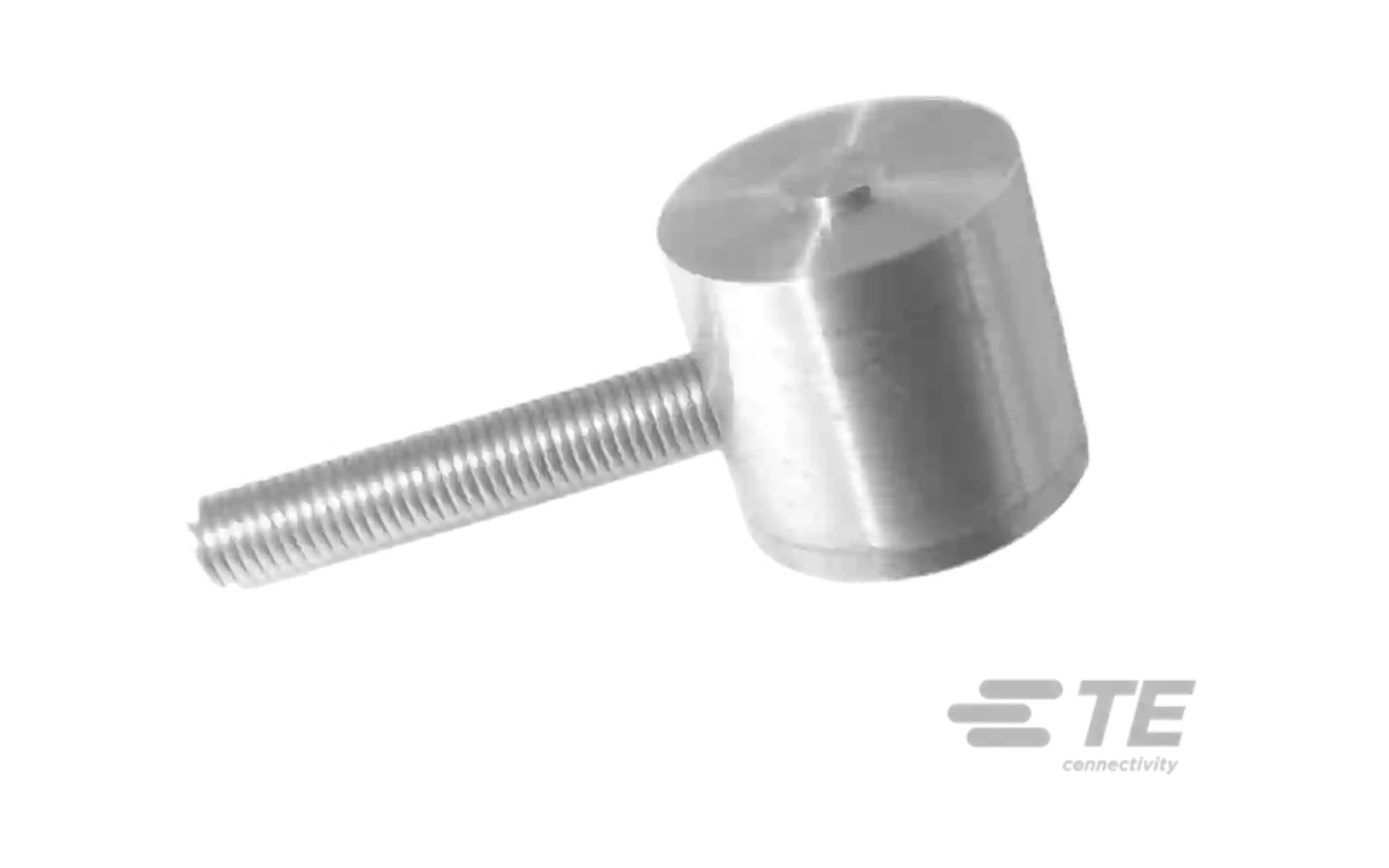

XFC200R Miniature Force Sensor

Lightweight sensor with a spherical load button resulting in more precise measurements


Key features

  • High accuracy for low ranges
  • Integrated spherical load button
  • High overload capacity
  • Small design
  • High stifness

About the XFC200R Miniature Force Sensor

The miniature size and lightweight of the XFC200R small force sensor facilitates testing where these conditions are necessary.

Unlike sensors with flat force application surfaces, the XFC200R incorporates a spherical load button resulting in more precise measurements. Its high stiffness, for the size and measurement ranges, allows measurements in dynamic applications. A strain relief spring strengthens the cable output. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages.

Applications for XFC200R

  • Robotics and effectors
  • Micro component assembly tools
  • Keyboard and phone buttons control
  • Mechanical switches control

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Housing material Stainless steel or aluminum alloy
Load direction Compression
Measurement range 2N, 5N, 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN, 5kN, 10kN
Operating temperature -40 – 120°C 
Output signal ±100mV
Sealing IP50
