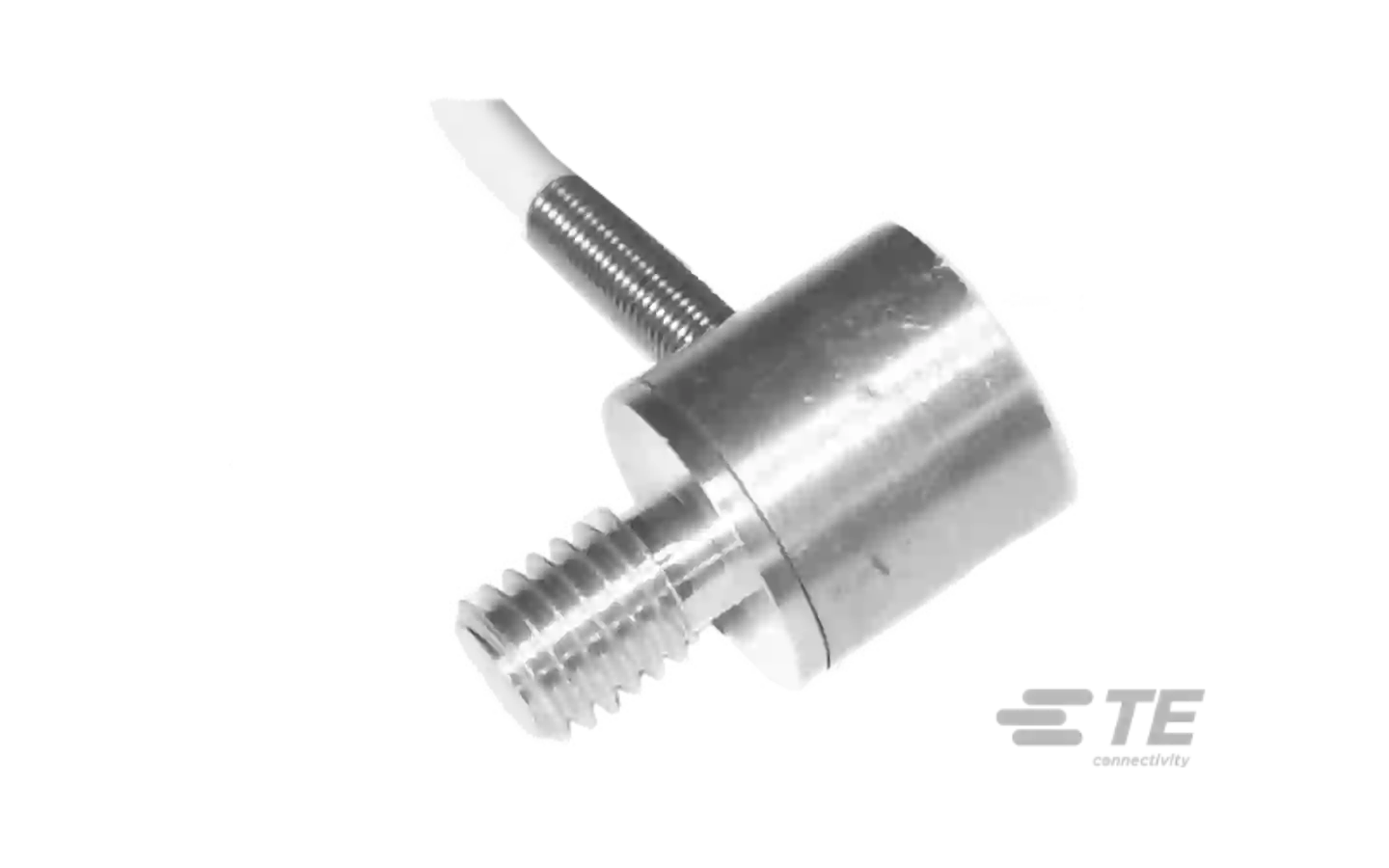

XFC205R Miniature Force Sensor

Easy installation with threaded M5 male base


Key features

  • Easy installation with threaded M5 male base
  • Integrated spherical load button
  • High IP rating on request
  • Other thread and design on request

About the XFC205R Miniature Force Sensor

The miniature size and lightweight of the XFC205R facilitates testing where these conditions are necessary.

Unlike sensors with flat force application surfaces, the XFC205R incorporates a spherical load button resulting in more precise measurements. Its high stiffness, for the size and measurement ranges, allows measurements in dynamic applications. A strain relief spring strengthens the cable output. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. With a threaded M5 male base, the XFC205R is easily installed in industrial or OEM applications.

Applications for XFC205R

  • Process control equipment
  • Press-fit machinery
  • Robotics and effectors
  • Laboratory
  • Fibre optical component assembly

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% FS
Housing material Aluminum alloy or stainless steel
Load direction Compression
Measurement range 2N, 5N, 10N, 20N, 50N, 100N, 200N
Output signal ±100 mV
Sealing IP50
