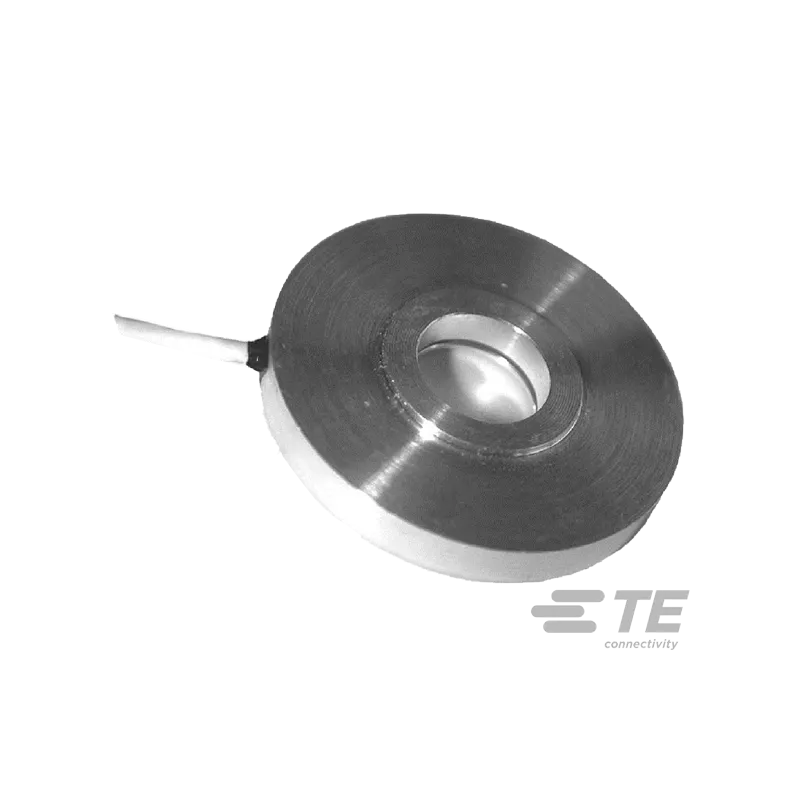

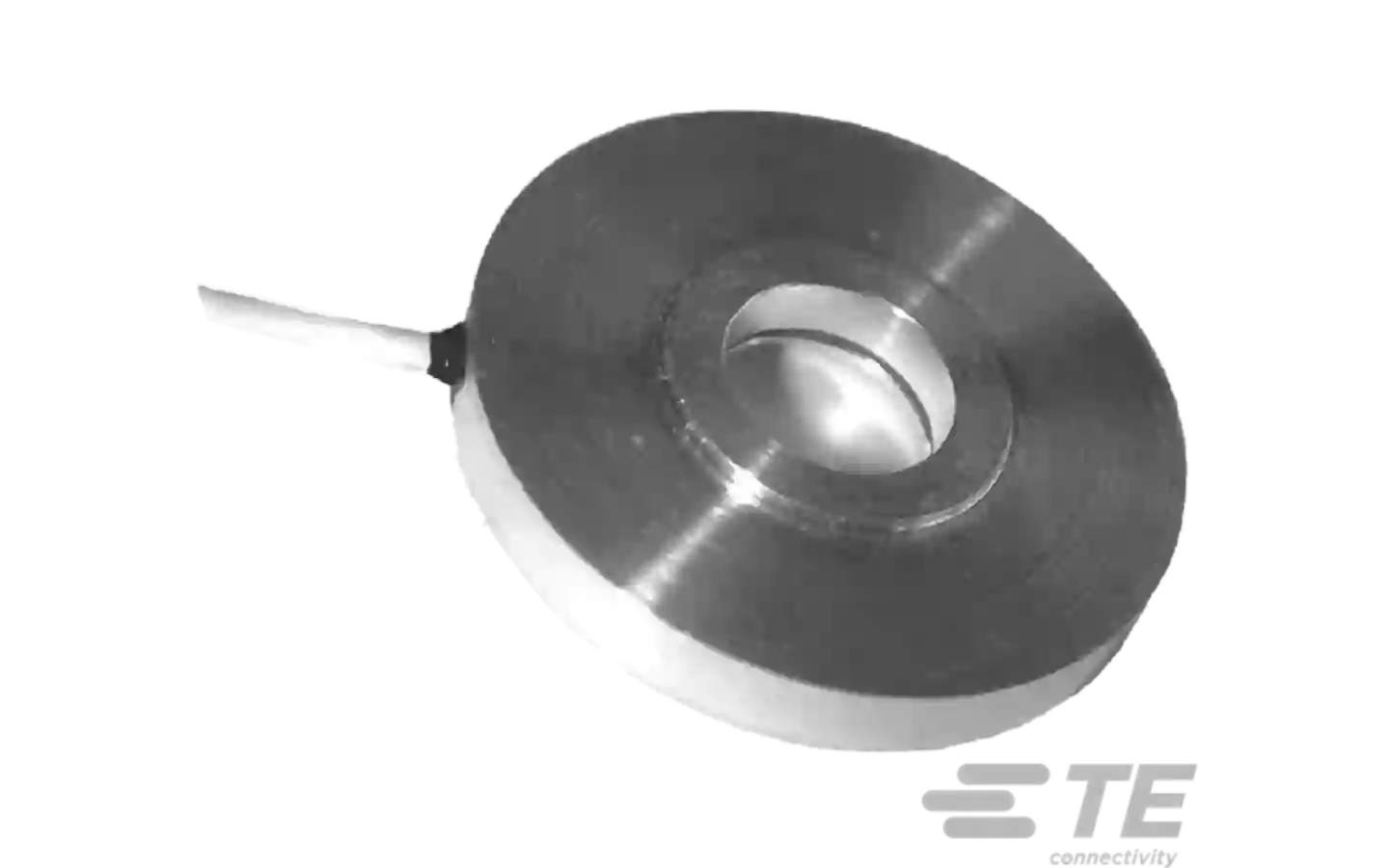

XFL225D Miniature Force Sensor

Very flat miniature force sensor


Key features

  • Load washer model
  • Flat sensor
  • Inside hole 8mm or flat surface
  • Temperature compensated

About the XFL225D Miniature Force Sensor

The XFL225D series is a very flat miniature load cell with a temperature compensation module integrated into the output cable.

The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The XFL225D is developed for measuring large full scale ranges up to 5000N; 1000 lbf and can withstand considerable overloads. It can measure strain during compression in static and dynamic applications. A strain relief spring strengthens the cable output. This sensor is available in a load washer model (the diameter of the hole is 8.2 mm) to measure bolt tightening forces.

Applications for XFL225D

  • Strain table measurement
  • Micro component assembly tools
  • Screw and insert test benches
  • Press fit monitoring
  • Laboratory

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±1% of FS
Diameter 25mm [0.98”]
Housing material Stainless steel or aluminum
Load direction Compression
Measurement range 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN, 5kN
Output signal ±100 mV
Sealing IP50
