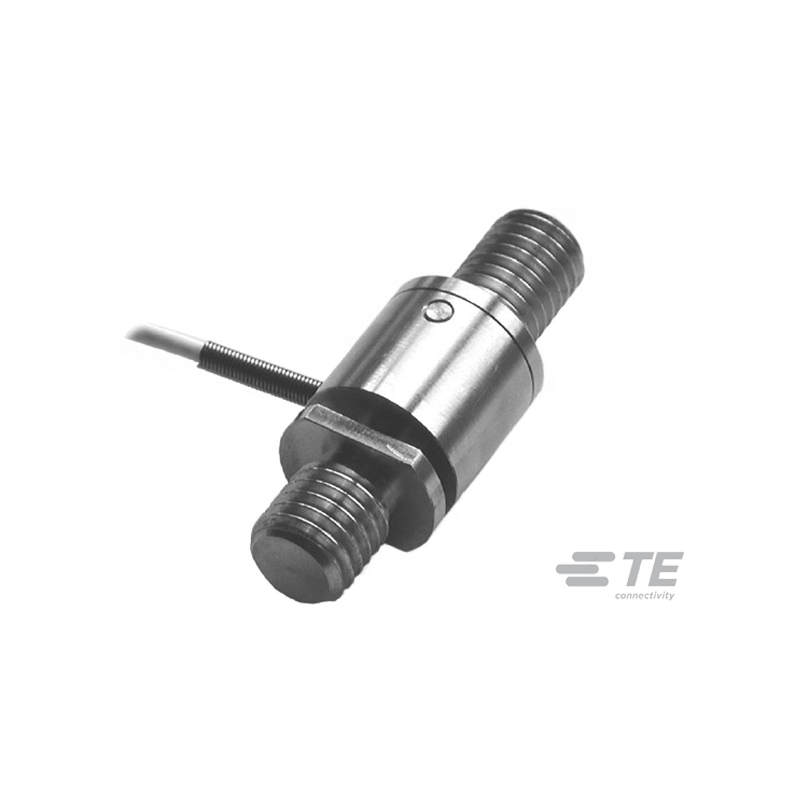

XFTC300 Miniature Force Sensor

For static and dynamic applications


Key features

  • Tension and/or compression
  • Small design easy to mount
  • Wide temperature range in option
  • Amplifier integrated optional
  • Easy to customize signal and design

About the XFTC300 Miniature Force Sensor

The XFTC300 series has been specifically developed to measure tension and/or compression in static and dynamic applications.

The miniature size and light-weight facilitate testing where these conditions are necessary. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes the load cell’s performance at low ranges and frequencies. For sensors with a range of between 2N and 2kN, a high-level output model is available. With two male threads, the XFTC300 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.

Applications for XFTC300

  • Dynamic strain cylinder regulation
  • Miniature press-fit device
  • Fatigue test benches
  • Robotics regulation
  • Small size actuators

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Force introduction Threaded male mechanical fitting
Housing material Stainless steel or aluminum alloy
Linearity < 0,5% FS
Load direction Compression, tension
Measurement range 2N, 5N, 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN
Output signal ±10 mV/V, ±2 V, ±5 V
Sealing IP50
