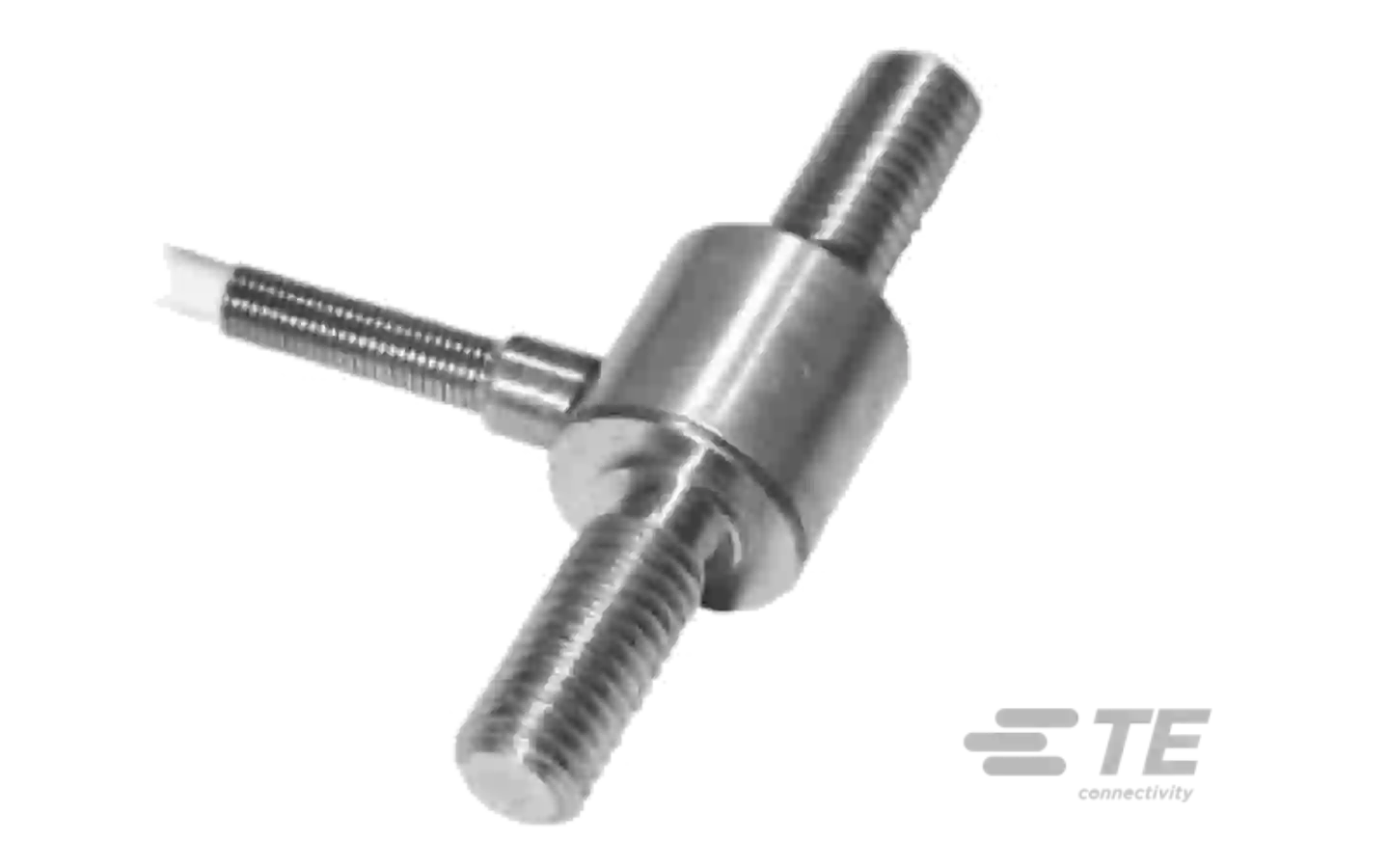

XFTC301 Miniature Force Sensor

Facilitates testing where space scarce


Key features

  • Tension and/or compression
  • Small design easy to mount
  • Wide temperature range in option
  • Very small size
  • High stiffness
  • Threaded male mechanical fitting

About the XFTC301 Miniature Force Sensor

The XFTC301 series has been specifically developed to measure tension and compression in static and dynamic applications.

The miniature size facilitates testing where space is at premium. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes the load cell’s performance at low ranges and frequencies. A strain relief spring strengthens the cable output. With two threaded male studs, the XFTC301 is easily installed in industrial or OEM applications.

Applications for XFTC301

  • Micro mechanic equipment
  • Miniature press-fit device
  • Robotics regulation
  • Small size actuators

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Housing material Stainless steel or aluminum alloy
Load direction Compression, tension
Measurement range 500N, 1kN, 2kN, 5kN, 10kN
Operating temperature -40 – 120°C
Output signal ±100mV, ±50mV
Sealing IP50
