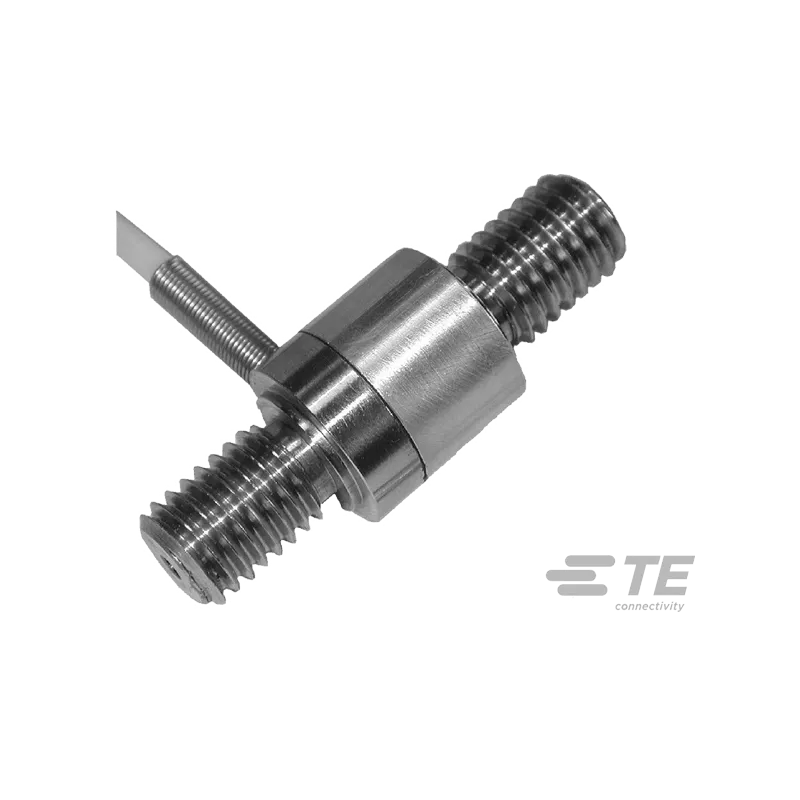

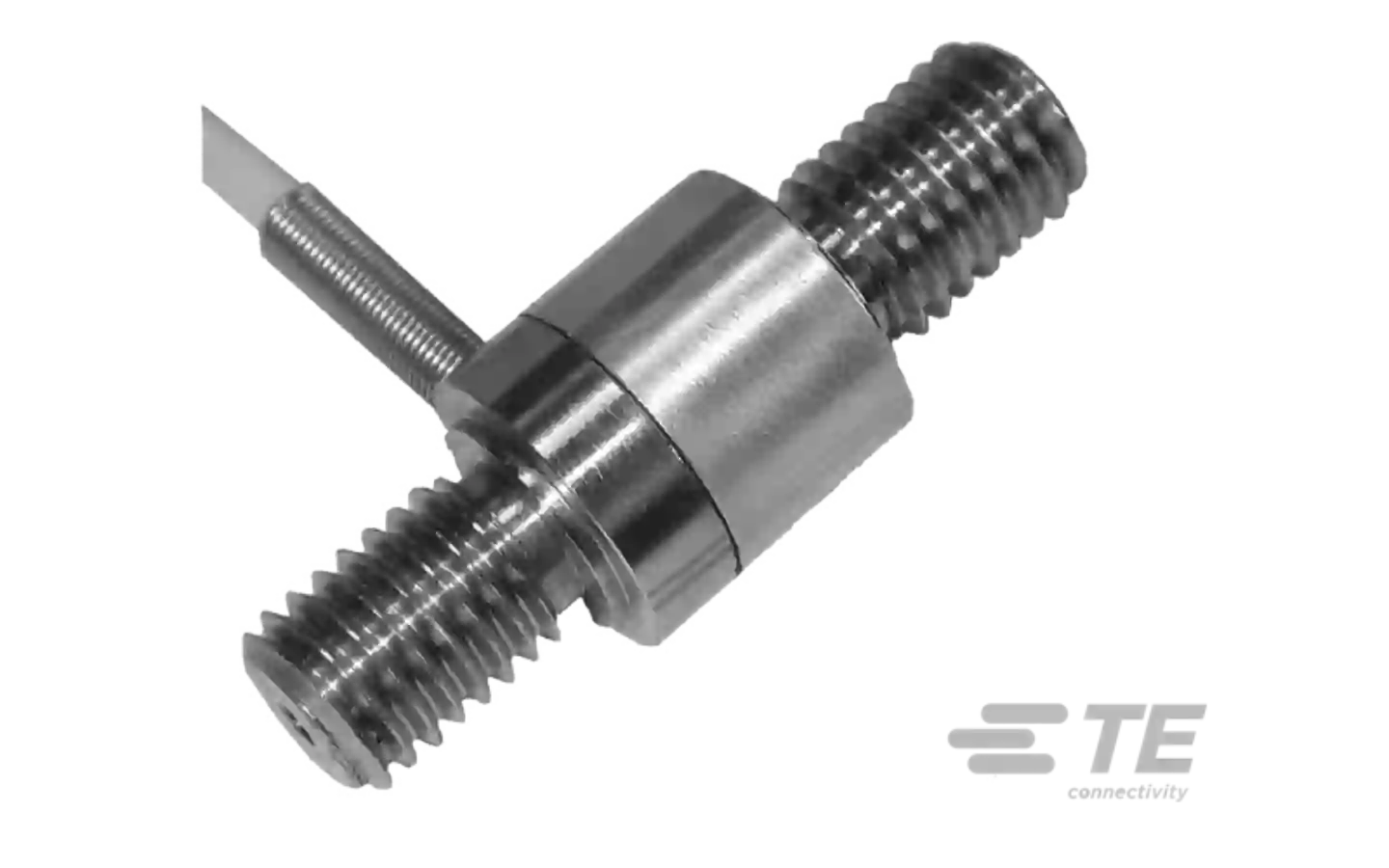

XFTC302 Miniature Force Sensor

Easily installed in industrial or OEM applications


Key features

  • Wide temperature compensation range
  • Optional IP rating improvement
  • Heavy duty
  • Integrated amplifier optional
  • Easy to customized signal and design

About the XFTC302 Miniature Force Sensor

The XFTC302 series has been specifically developed to measure tension and/or compression in static and dynamic applications.

Fitted with metallic strain gages in a Wheatstone bridge circuit, the XFTC302 has the capacity of measuring heavy loads of up to 10,000 N, 2000 lbf while providing excellent temperature stability. With two threaded M10 studs, the XFTC302 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.

Applications for XFTC302

  • Dynamic strain cylinder regulation
  • Miniature force & temperature tests
  • Motor sport clutch monitoring
  • Robotics regulation
  • Heat room environment

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Housing material Stainless steel
Load direction Compression, tension
Measurement range 5kN, 10kN
Operating temperature -55 – 175°C, -40 – 85°C
Output signal ±1 mV/V, ±2 V
Sealing IP50
