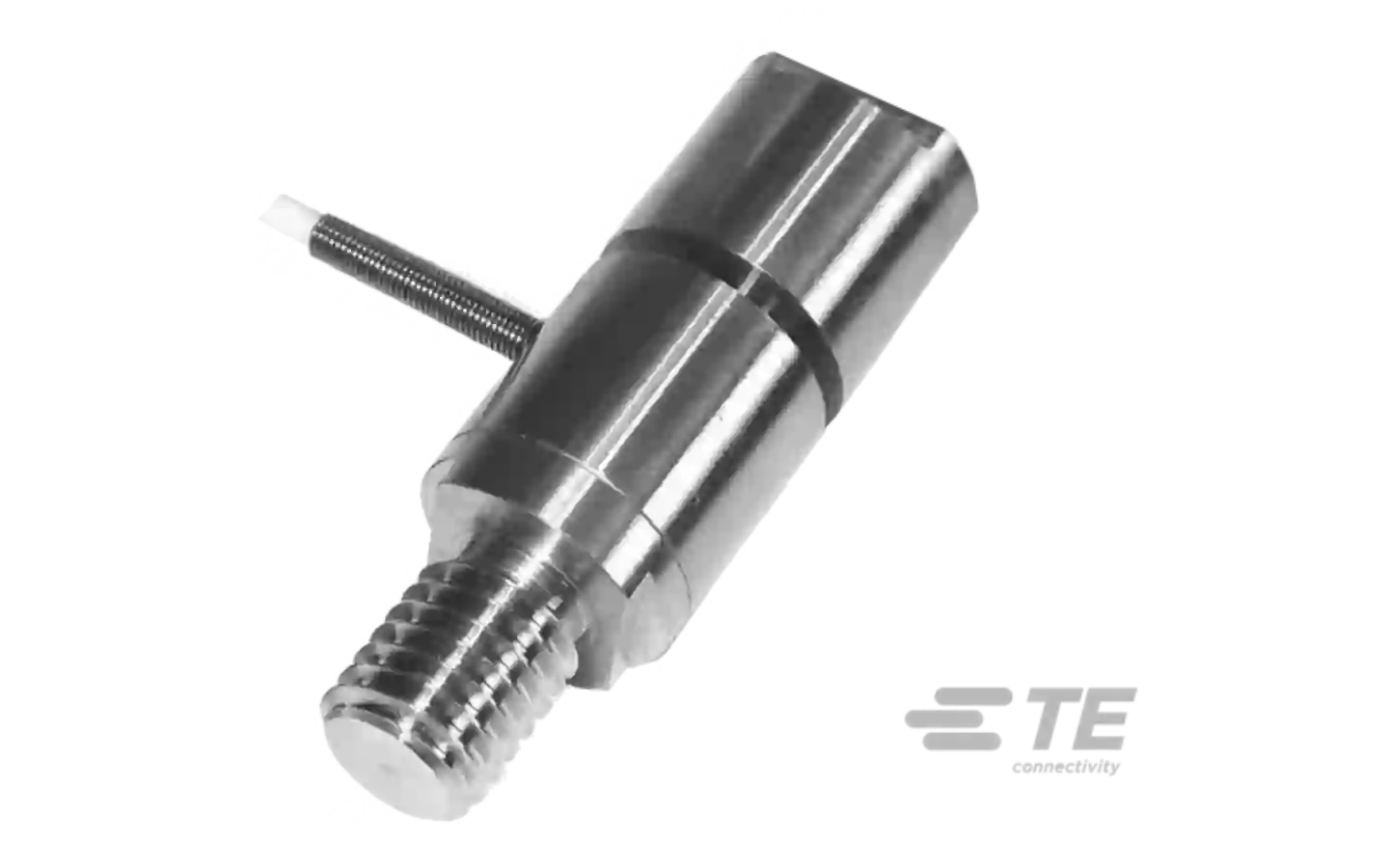

XFTC310 Miniature Force Sensor

Small design, easy to mount

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Housing material Stainless steel or aluminum alloy
Load direction Compression, tension
Measurement range 2N, 5N, 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN
Operating temperature -40 – 120°C
Output signal ±10mV/V, ±2V, ±5V
Sealing IP50

Related products

Need something else?

XFTC311 Miniature Force Sensor

  • Measuring range: ~500 N to ~10kN
  • Various male/female thread options
  • Optional protection rating improvement
Datasheet View product

XFTC320 Miniature Force Sensor

  • Measuring range: ~2 N to ~2 kN
  • Miniature size & light weight
  • Optimal performance at low ranges
Datasheet View product

XFTC321 Miniature Force Sensor

Datasheet View product
