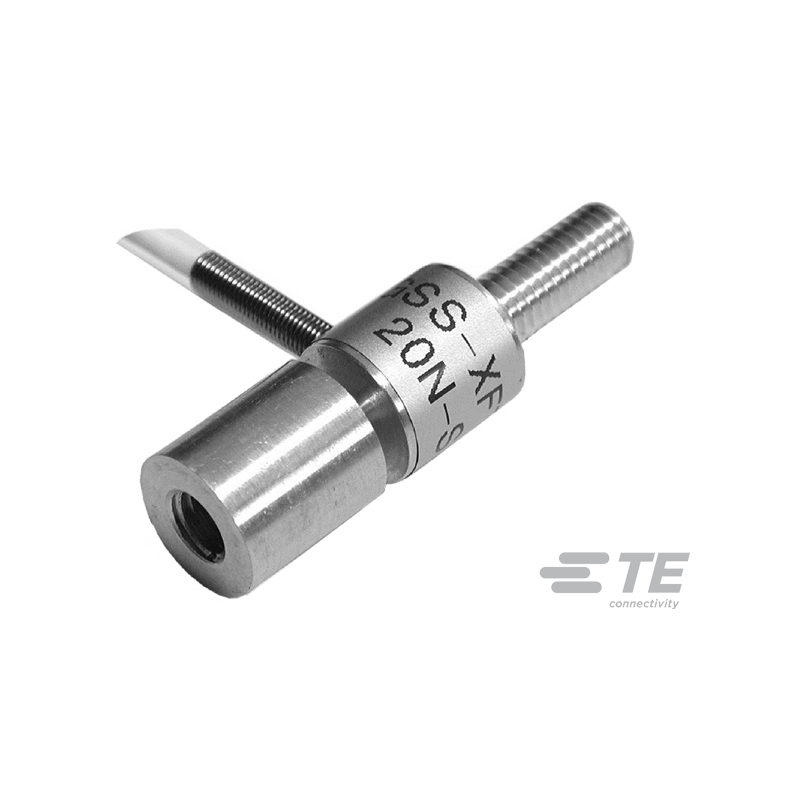

XFTC311 Miniature Force Sensor

Male/female M5 and M10 threaded


Key features

  • Male/female M5 and M10 threaded
  • Optional IP rating improvement
  • Extended temperature use as option

About the XFTC311 Miniature Force Sensor

The XFTC311 series has been specifically developed to measure tension and compression in static and dynamic applications.

The miniature size facilitates testing where space is at a premium. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes the load cell’s performance at low ranges and frequencies. A strain relief spring strengthens the cable output.
With male/female threads, the XFTC311 is easily installed in industrial or OEM applications.

Applications for XFTC311

  • Strain measurement on finger-like command
  • Small size actuators
  • Miniature press-fit device
  • Robotics control measurement
  • Laboratory

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Housing material Stainless steel or aluminum alloy
Load direction Compression, tension
Measurement range 500N, 1kN, 2kN, 5kN, 10kN
Output signal ±100mV, ±50mV
Sealing IP50
