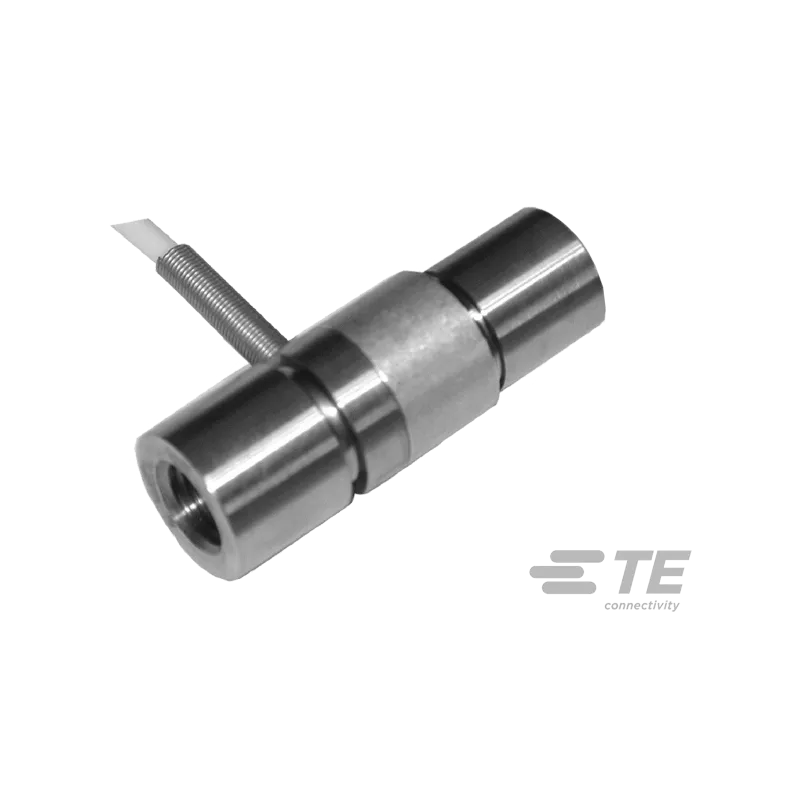

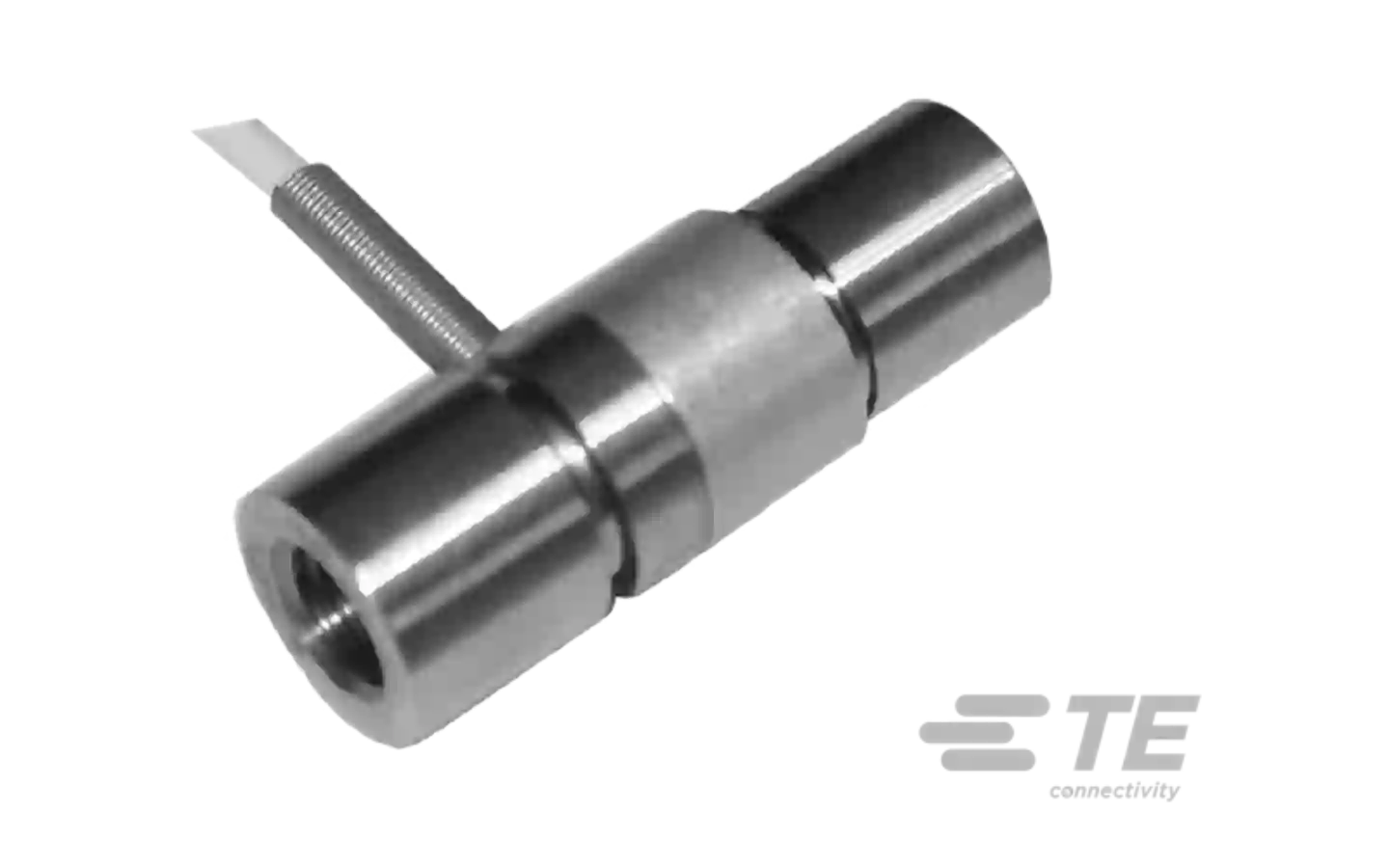

XFTC320 Miniature Force Sensor

The two female threads make it easy to install in industrial or OEM applications


Key features

  • Heavy Duty
  • Sealed version available as option
  • Integrated amplifier optional
  • Tension and compression
  • High overload capacity

About the XFTC320 Miniature Force Sensor

The XFTC320 series has been specifically developed to measure tension and/or compression in static and dynamic applications.

The miniature size and light weight facilitate testing where these conditions are necessary. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gauges optimizes the load cell’s performance at low ranges and frequencies. For sensors with a range of between 500 N and 2 kN [100 and 400lbf], a high-level output model is available. With two female threads, the XFTC320 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.

Applications for XFTC320

  • Strain measurement on finger-like command
  • Underwater robots control command
  • Miniature press-fit device
  • Fatigue tests benches
  • Small size actuators

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Housing material Stainless steel or aluminum alloy
Load direction Compression, tension
Measurement range 2N, 5N, 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN
Operating temperature -40 – 120°C
Output signal ±10mV/V, ±2V, ±5V
Sealing IP50
