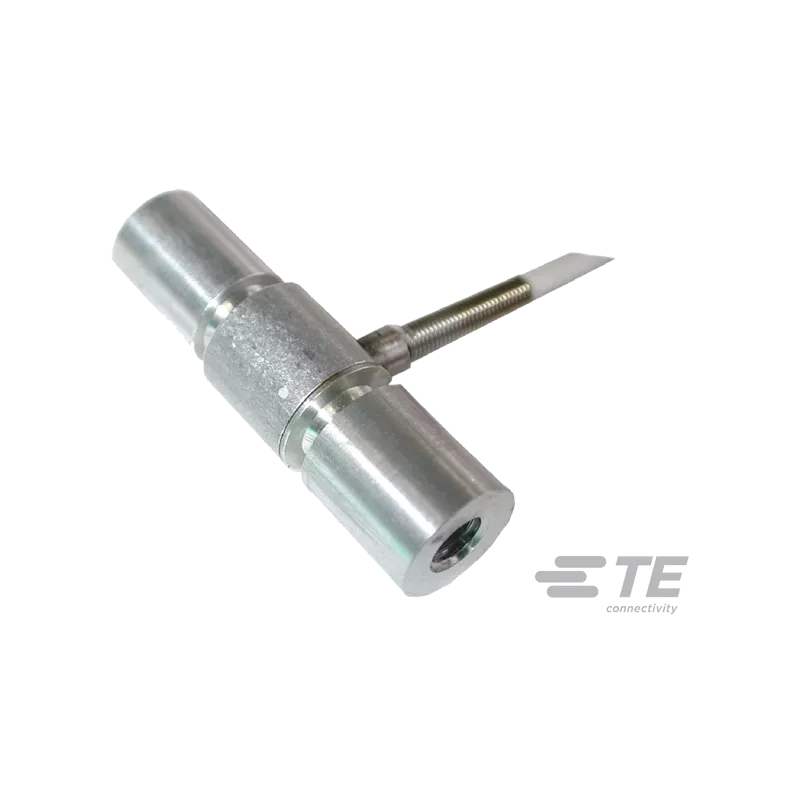

XFTC321 Miniature Force Sensor

Female threaded mechanical fitting


Key features

  • Aluminum or stainless steel body
  • Tension and compression
  • Heavy duty
  • Sealed version optional
  • Easy to customize threads

About the XFTC321 Miniature Force Sensor

The XFTC321 series has been specifically developed to measure tension and compression in static and dynamic applications.

The miniature size facilitates testing where space is at a premium. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes the load cell’s performance at low ranges and frequencies.
A strain relief spring strengthens the cable output. With two female threads, the XFTC321 is easily installed in industrial or OEM applications.

Applications for XFTC321

  • Dynamic strain cylinder regulation
  • Miniature press-fit device
  • Laboratory
  • Robotics regulation
  • Small size actuators

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Force introduction Threaded female mechanical fitting
Housing material Stainless steel or aluminum alloy
Load direction Compression, tension
Measurement range 500N, 1kN, 2kN, 5kN, 10kN
Operating temperature -40 – 120°C
Output signal ±100 mV, ±50 mV
Sealing IP50
