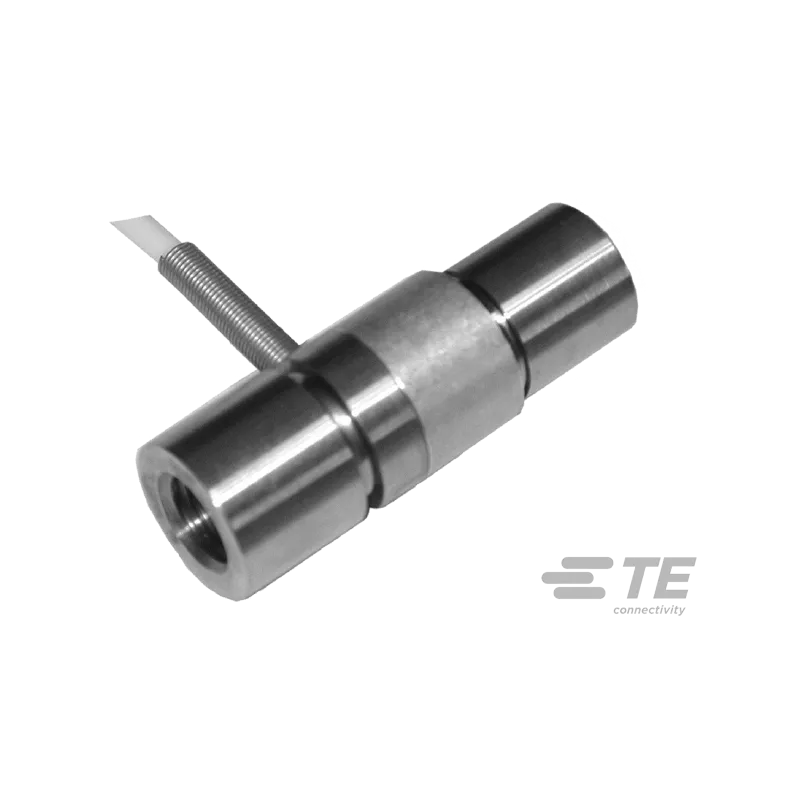

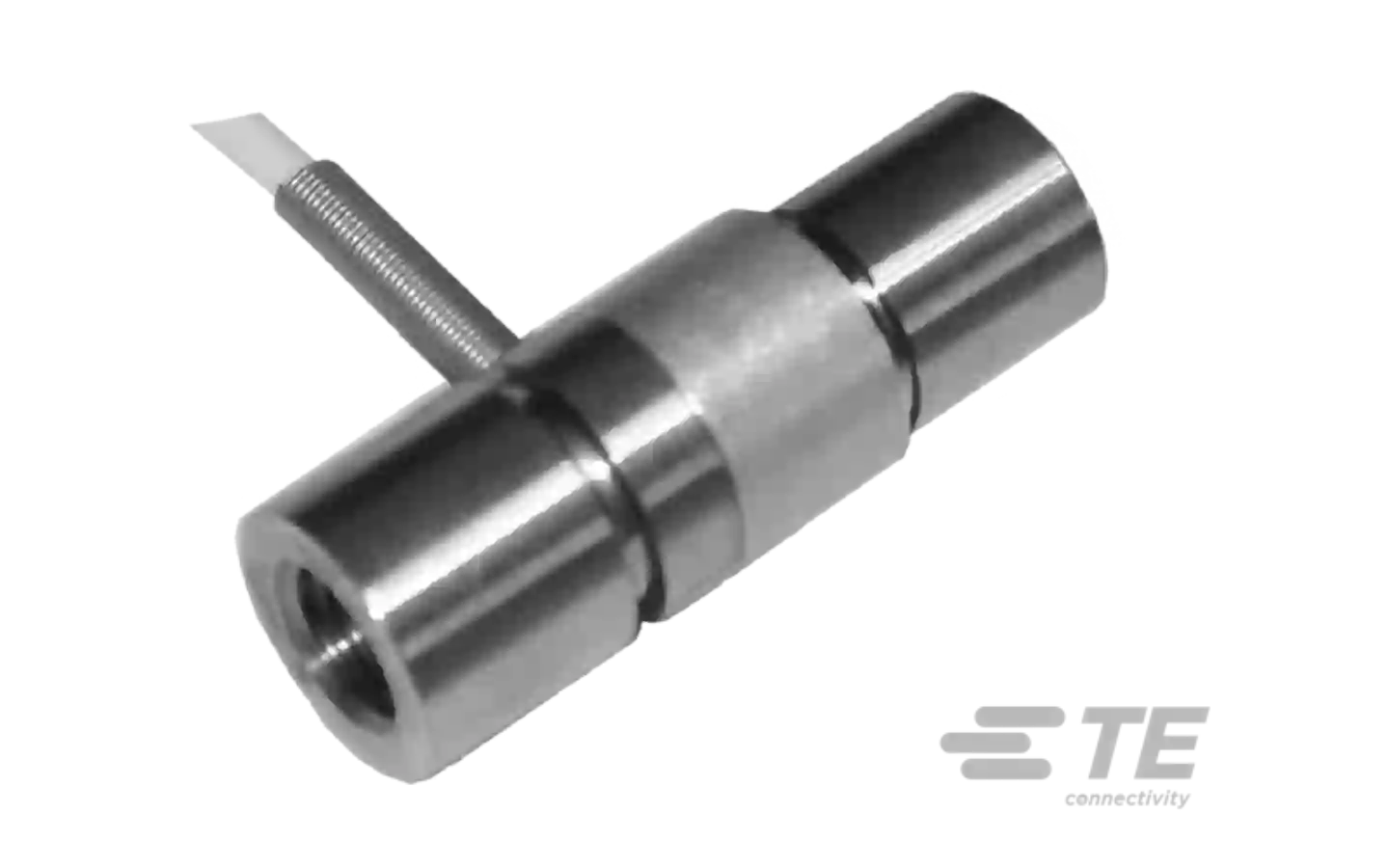

XFTC322 Miniature Force Sensor

High temperature range : -55 to 175 °C


Key features

  • Wide range of temperature compensated
  • Optional IP rating improvement
  • Heavy duty
  • High stiffness

About the XFTC322 Miniature Force Sensor

The XFTC322 series has been specifically developed to measure tension and/or compression in static and dynamic applications.

Fitted with metallic strain gages in a Wheatstone bridge circuit, the XFTC322 has the capacity of measuring heavy loads of up to 10 kN [2 klbf], while providing excellent temperature stability. With two threaded M10 studs, the XFTC322 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.

Applications for XFTC322

  • Dynamic strain cylinder regulation
  • Miniature press-fit device
  • Fatigue test benches
  • Robotics regulation
  • Heat room environment

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±.5% of FS
Force introduction Female threaded
Housing material Stainless steel
Load direction Compression, tension
Measurement range 5kN, 10kN
Operating temperature -55 – 175°C
Output signal ±1mV/V, ±2V
Sealing IP50
