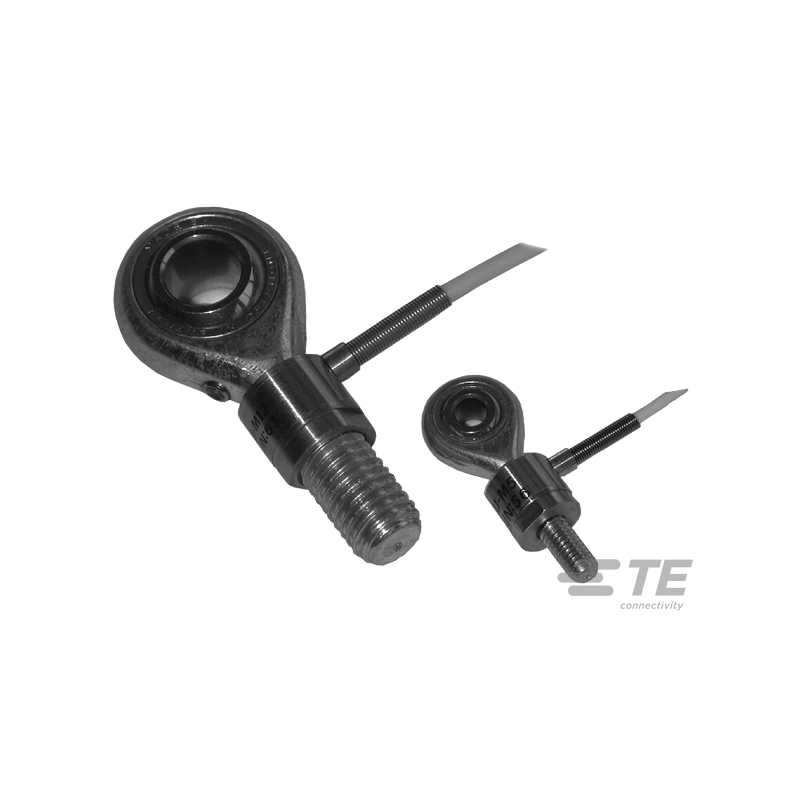

XFU400 Miniature Force sensor
Used in applications that require a spherical plain rod-end bearing
Key features
- Based on standard rod end bearings
- Easy to integrate
- Fast response time
About the XFU400 Miniature Force Sensor
Available in a range of measurements and a variety of mounting threads, the XFU400 is easily installed.
Its miniature size facilitates testing where space is at a premium. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages.
The XFU400 is used in applications that require a spherical plain rod-end bearing and has the capacity of accepting a full scale range of up to 5 kN [1 klbf].
Applications for XFU400
- Linkage forces
- Machine tool
- Automotive systems test
- Robotics and effectors
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Accuracy | ±.3% of FS |
Force introduction | Rod end bearings |
Housing material | Zinc coated and passivated steel |
Load direction | Tension |
Measurement range | 500N, 1kN, 2kN, 5kN |
Operating temperature | -40 – 120°C |
Output signal | ±100mV |
Sealing | IP50 |
