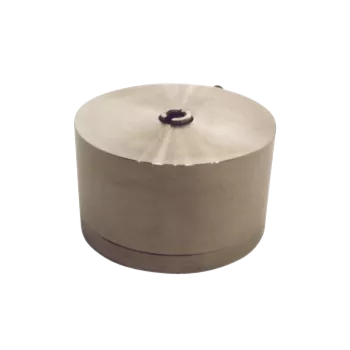

ALF307 Multi-axis Force Sensor
Provides a bi-directional direct measurement of the X, Y and Z components resulting from a force vector
Key features
- Three axis loadcell
- Full load range: 10 - 20kN
- Bi-directional
- Rated output nominal: 1.5mV/V
- Non-lin./hysteresis: 0.3/0.4% RL
- Dimensions (mm): Ø130 x 80
About the ALF307 Multi-axis Force Sensor
The ALF307 loadcell provides a bi-directional direct measurement of the X, Y and Z components resulting from a force vector. Apart from error evaluations, each output is pure and requires no mathematical manipulation.
The ALF307 is ideally suited to many industrial and scientific applications, including automotive research.
The performance specification is valid for moments up to 50Nm. For applications up to 200Nm please see the ALF307 Engineering Application Sheet.
The loadcell can be manufactured with force ranges to suit the application. The axes can have different force ranges. Please consult our engineering department about the viability of the required ranges.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
Notes
1. AL = Applied load. 3. Temperature coefficients apply over the compensated range.
2. RL = Rated load. 4. Values apply to all axes unless otherwise specified.
Connections
The ALF307 is fitted with 2 metres of PVC insulated 12 core screened cable, type 7-1-12C, terminated with a 25 pin D type plug. The screen is not connected to the loadcell body.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 700 Ω |
| Creep - 20 minutes | ±0.1% AL |
| Excitation voltage - maximum | 10V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.4% RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Load direction | Bi-directional |
| Maximum cross talk | 3% RL |
| Measurement range | 10kN - 20kN |
| Non-linearity - terminal | ±0.3% RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 100% RL |
| Overload moment - safe | 250 Nm |
| Overload moment - ultimate | 500 Nm |
| Rated output - nominal | 1.5mV/V |
| Repeatability | ±0.02% RL |
| Structural stiffness - x and y | 6.2 x 10^7 (10kN) 6.6 x 10^7 (20kN) N/m |
| Structural stiffness - z | 8.7 x 10^7 (10kN) 9.4 x 10^7 (20kN) N/m |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.007% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Weight - nominal (excluding cable) | 3.1kg |
| Zero load output | ±4% RL |
