ALF310 Multi-axis Force Sensor
Axial force and torque transducer
Key features
- Axial force and torque transducer
- Full load range: 50N / 2Nm
- Rated output nominal: 0.6mV/V
- Non-lin./hysteresis: 0.05/0.05% RL
- Dimensions (mm): Ø88 x 45
About the ALF310 Multi-axis Force Sensor

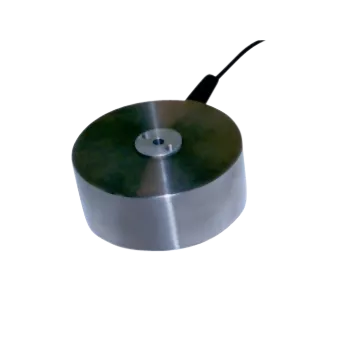

The ALF310 depicted measures force and torque in the same axis with minimal cross talk providing user friendly outputs for direct measurement without mathematical manipulation.
Each channel may be calibrated bi-directionally. The version of the transducer depicted was developed for an OEM producing texture analyzer machines (rheometers) for use in the food process industry.
We are happy to design variants of this loadcell to meet your specific requirements. Variants may include different combinations of force and moment axis e.g. FxMz, FyMx, FzMy etc.
Geometry: Monocoque strain structure with no moving parts.
Notes
1. AL = Applied load. 3. Temperature coefficients apply over the compensated range.
2. RL = Rated load. 4. Values apply to force and moment in all load combinations.
Connections
The ALF310 is fitted with 2 metres of PVC insulated 9 core screened cable type 7-1-9C. The screen is not connected to the loadcell body.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 350 Ω |
| Creep - 5 minutes | ±0.1% AL |
| Excitation voltage - maximum | 10V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.05% RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Maximum cross talk | 1% RL |
| Measurement range | Custom Ranges |
| Non-linearity - terminal | ±0.05% RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 300 % RL |
| Rated output - nominal | 0.6mV/V |
| Rated output - rationalised | 0.5mV/V |
| Rationalisation tolerance (applies to single direction calibrations) | ±0.5% RL |
| Repeatability | ±0.05% RL |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.02% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Weight - nominal (excluding cable) | 250 g |
| Zero load output | ±4% RL |
