ALF314 Multi-axis Force Sensor

Measures forces in two axes at 90°

View technical specifications

Key features

  • Two axis loadcell
  • Full load range: 2 - 10kN
  • Rated output nominal: 1.2mV/V
  • Non-lin./hysteresis: 0.1/0.1% RL
  • Dimensions (mm): 110 x 63 x 20

About the ALF314 Multi-axis Force Sensor

The ALF314 measures forces in two axes at 90°. Apart from error evaluations, each output is pure and requires no mathematical manipulation.

The loadcell is ideally suited to many industrial and scientific applications, including automotive research.

The integral spherical bearing removes the possibility of applying moments to the loadcell. If rigid fixings are required and moments are present the performance specification may be affected, our engineering department would be happy to evaluate performance changes.

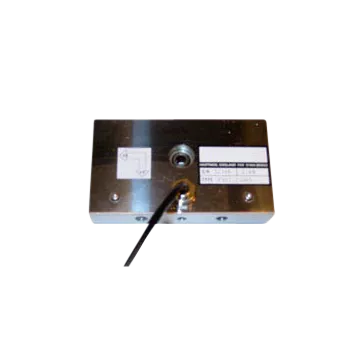

The loadcell can be manufactured with force ranges to suit the application. Please consult our engineering department about the viability of the required ranges. The example shown in the picture and drawing is a ±200kg model; there will be small differences in the dimensions of the fixings for other ranges.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for higher temperature operation. Please consult our engineering department.

Notes
1. AL = Applied load. 3. Temperature coefficients apply over the compensated range.
2. RL = Rated load. 4. Values apply to all axes unless otherwise specified.

Connections
The ALF314 is fitted with 2 metres of PVC insulated 9 core screened cable type 7-1-9C.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Bridge resistance 350 Ω
Creep - 20 minutes ±0.1% AL
Excitation voltage - maximum 10V
Excitation voltage - recommended 10V
Hysteresis ±0.1% RL
Insulation resistance - minimum at 50vdc 500 MΩ
Load direction Bi-directional
Maximum cross talk 1% RL
Measurement range 2kN - 10kN
Non-linearity - terminal ±0.1% RL
Overload - safe 50% RL
Overload - ultimate 100% RL
Rated output - nominal 1.2mV/V
Repeatability ±0.02% RL
Sealing IP65
Temperature effect on rated output per °c ±0.005% AL
Temperature effect on zero load output per °c ±0.01% RL
Temperature range - compensated -10 to +50°C
Temperature range - safe -10 to +80°C
Weight - nominal (excluding cable) 0.3 to 0.8kg
Zero load output ±4% RL
