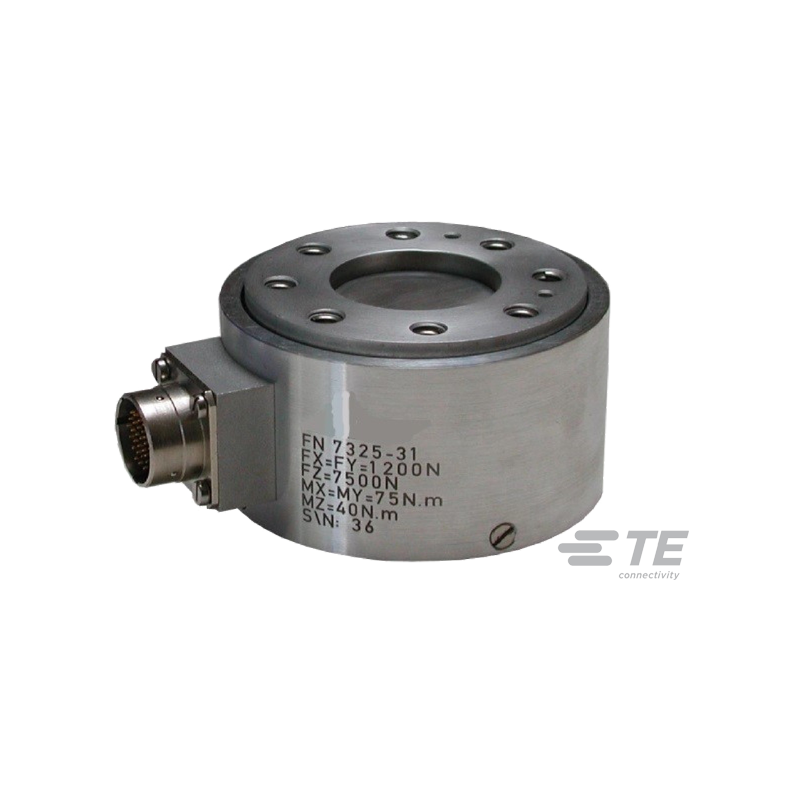

FN7325 Multi-axis Force Sensor
Measures force, along three axes
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 1% F.S. |
| Full scale range | 5 - 250kN |
| Load direction | Compression, tension |
| Operating temperature | -20 – 80°C |
| Output | 10 - 15mV/V (0.5 - 4.5V and ±5V) |
| Protection | IP50 |
