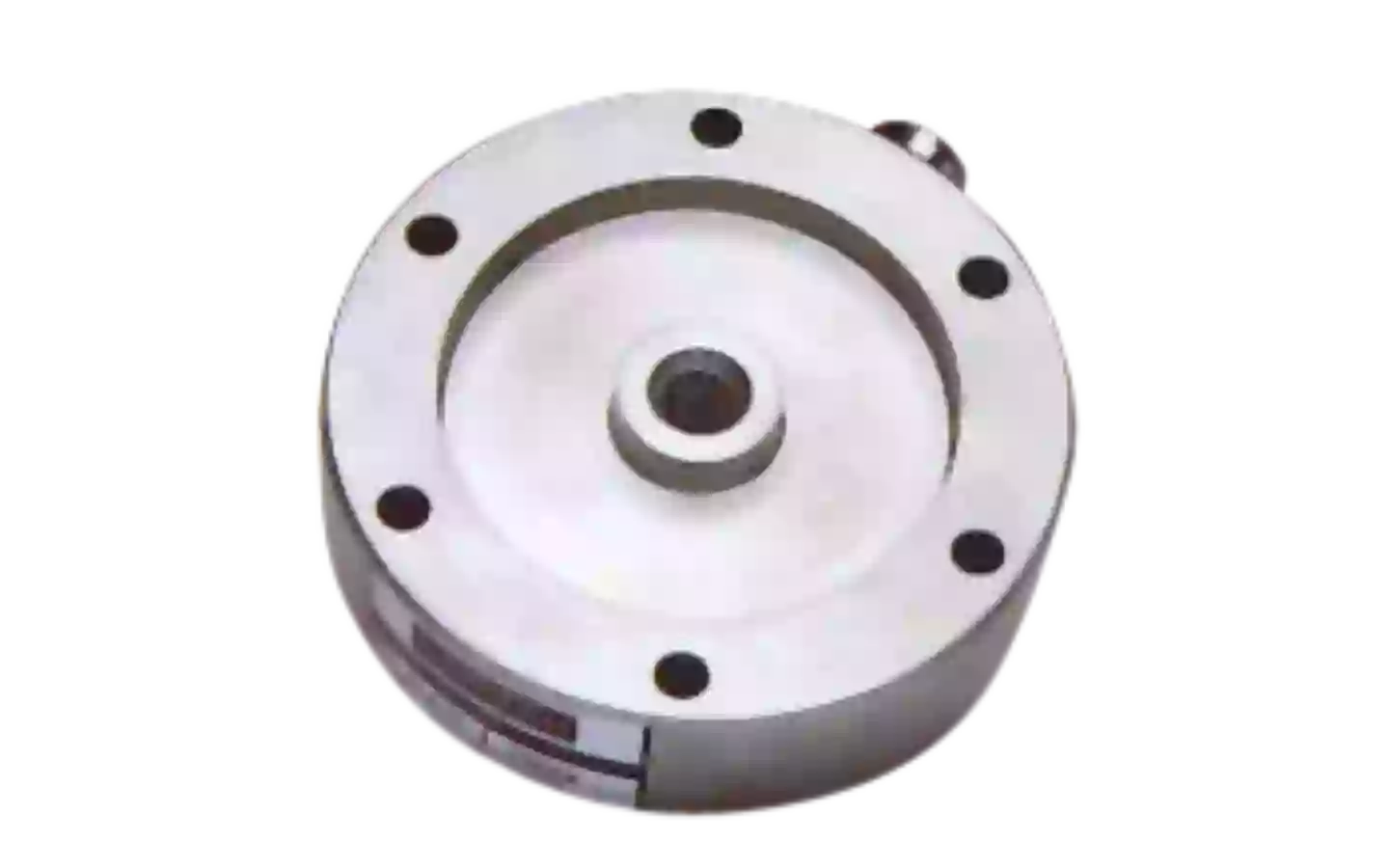

ALF252 Pancake Force Sensor
Low profile axial loadcell for use in force measurements in tension and compression
Key features
- Full load range: 1kN, 2kN, 4kN, 8kN, 10kN
- Tension, compression and bi-directional
- Non-lin./hysteresis: 0.1/0.1% RL
- Dimensions (mm): Ø99 x 27
About the ALF252 Pancake Force Sensor
With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.
The ALF252 is ideal for engineering force measurements particularly in applications where there is a limit on the height of the loadcell. It can be used for test machines and a wide range of general industrial applications.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
Geometry: Low profile axial loadcell for use in force measurements in tension and compression.
All standard ranges are manufactured in stainless steel.
Notes
1. AL = Applied load. 3. Temperature coefficients apply over the compensated range.
2. RL = Rated load. 4. The load must be applied directly through the central loading axis.
Connections
The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-2-4C.
Excitation + = Red Signal + = Yellow Screen = Orange
Excitation - = Blue Signal - = Green
Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Above 400kgf | 700 Ω |
| Bridge resistance up to 400kgf | 350 Ω |
| Creep - 20 minutes | ±0.05% AL |
| Excitation voltage - maximum | 20V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.1% RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Load direction | Tension, compression, bi-directional |
| Measurement range | 1kN, 2kN, 4kN, 8kN, 10kN |
| Non-linearity - terminal | ±0.1% RL |
| Overload - safe | 50 % RL |
| Overload - ultimate | 100 % RL |
| Rated output - nominal | 1.6mV/V |
| Rated output - rationalised | 1.5 mV/V |
| Rationalisation tolerance (applies to single direction calibrations) | ±0.5% RL |
| Repeatability | ±0.02% RL |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.02% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Weight - nominal (excluding cable) | 840 to 940g |
| Zero load output | ±4% RL |
