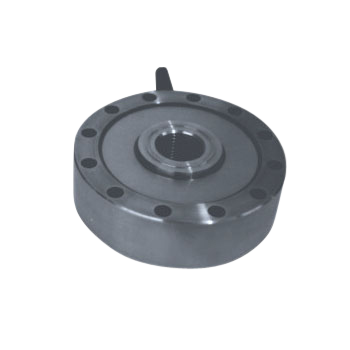

ALF254 Pancake Force Sensor
Shear web structure with high vertical and lateral mechanical stiffness
Key features
- Full load range: 25kN, 50kN, 100kN, 200kN
- Tension / compression / bi-directional
- Non-lin./hysteresis: 0.1/0.1% RL
- Dimensions (mm): Ø125 x 34 / Ø152 x 48
About the ALF254 Pancake Force Sensor
The ALF254 is designed for high levels of cyclic loading and is readily adapted to series mechanical connection within actuator rods or pistons by using our ‘in-line’ adapter.
The loadcell has good output symmetry between compression and tension operation. All standard bi-directional loadcells are calibrated in both modes. If you require a recessed boss the ALF318 may be more suitable. The ALF318 has standard ranges from 1 to 500kN.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
Geometry: Shear web structure with high vertical and lateral mechanical stiffness.
All standard ranges are manufactured in stainless steel.
Notes
1. AL = Applied load. 3. AO = Average of tension and compression outputs for full load.
2. RL = Rated load. 4. Temperature coefficients apply over the compensated range.
Connections
The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 16-2-4C or a 4 pin Binder 723 series chassis plug.
Excitation + = Red or pin 1 Signal + = Yellow or pin 3 Screen = Orange
Excitation - = Blue or pin 2 Signal - = Green or pin 4
Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| - other ranges | 48Nm |
| Bridge resistance | 700Ω |
| Creep - 20 minutes | ±0.05% AL |
| Excitation voltage - maximum | 20V |
| Excitation voltage - recommended | 10V |
| Fatigue life | 10^8±RL cycles |
| Fixing bolt torque (bolt grade 8.8) - 25kn range | 25Nm |
| Hysteresis | ±0.1% RL |
| Insulation resistance - minimum at 50vdc | 500MΩ |
| Load direction | Tension, compression, bi-directional |
| Measurement range | 25kN, 50kN, 100kN, 200kN |
| Non-linearity - terminal | ±0.1% RL |
| Output symmetry | ±0.2% AO |
| Overload - safe | 50% RL |
| Overload - ultimate | 200% RL |
| Rated output - nominal | 2.1mV/V |
| Rated output - rationalised | 2mV/V |
| Rationalisation tolerance (applies to single direction calibrations) | ±0.5% RL |
| Repeatability | ±0.02% RL |
| Sealing | IP65 |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.005% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Zero load output | ±4% RL |
