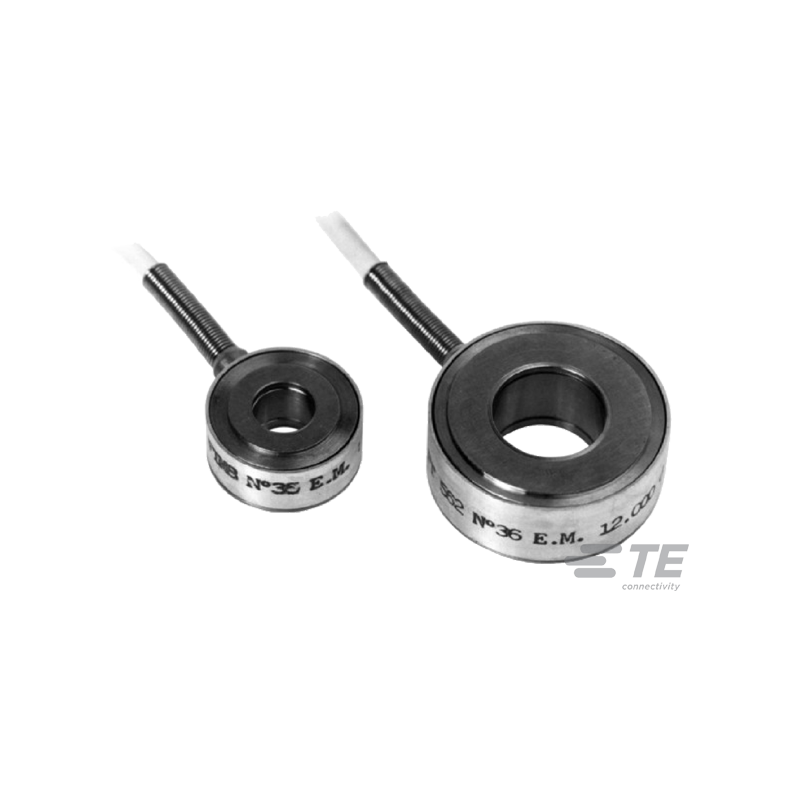

FMT Pancake Force Sensor
Is highly suited for process industry and test bench application
Key features
- Screw dimensions
- Compression
- For Static and Dynamic Applications
- Support Washer Provided
About the FMT Pancake Force Sensor
Althen washer loadcell, model FMT, is designed to measure clamping and screwing forces. The sensor design reduces the hysteresis and sensitivity variations associated with torque generated by friction during tightening. The FMT has a high stiffness and can be used in static and dynamic applications.
To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Applications for FMT
- Monitoring Blot Clamping for Bridges,
- Process Control Equipment,
- Robotics and Effectors,
- Laboratory and Research
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 1 - 5% F.S. |
| Force direction | Compression |
| Full scale range | 20kN, 35kN, 55kN, 80kN, 110kN, 140kN, 180kN, 220kN, 270kN, 320kN |
| Operating temperature | -20 – 80 °C |
| Output | 1.5 - 2mV/V |
| Protection | IP50 |
